Access Control Reader | IP66 Rated | Contactless IC Card Support & Anti-Tampering Alarm | Dahua Technology
Enhance security with this IP66 rated access control reader, supporting contactless IC cards and featuring an anti-tampering alarm. Ideal for residential, commercial, and industrial applications, it ensures reliable access management with built-in user feedback and protection features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

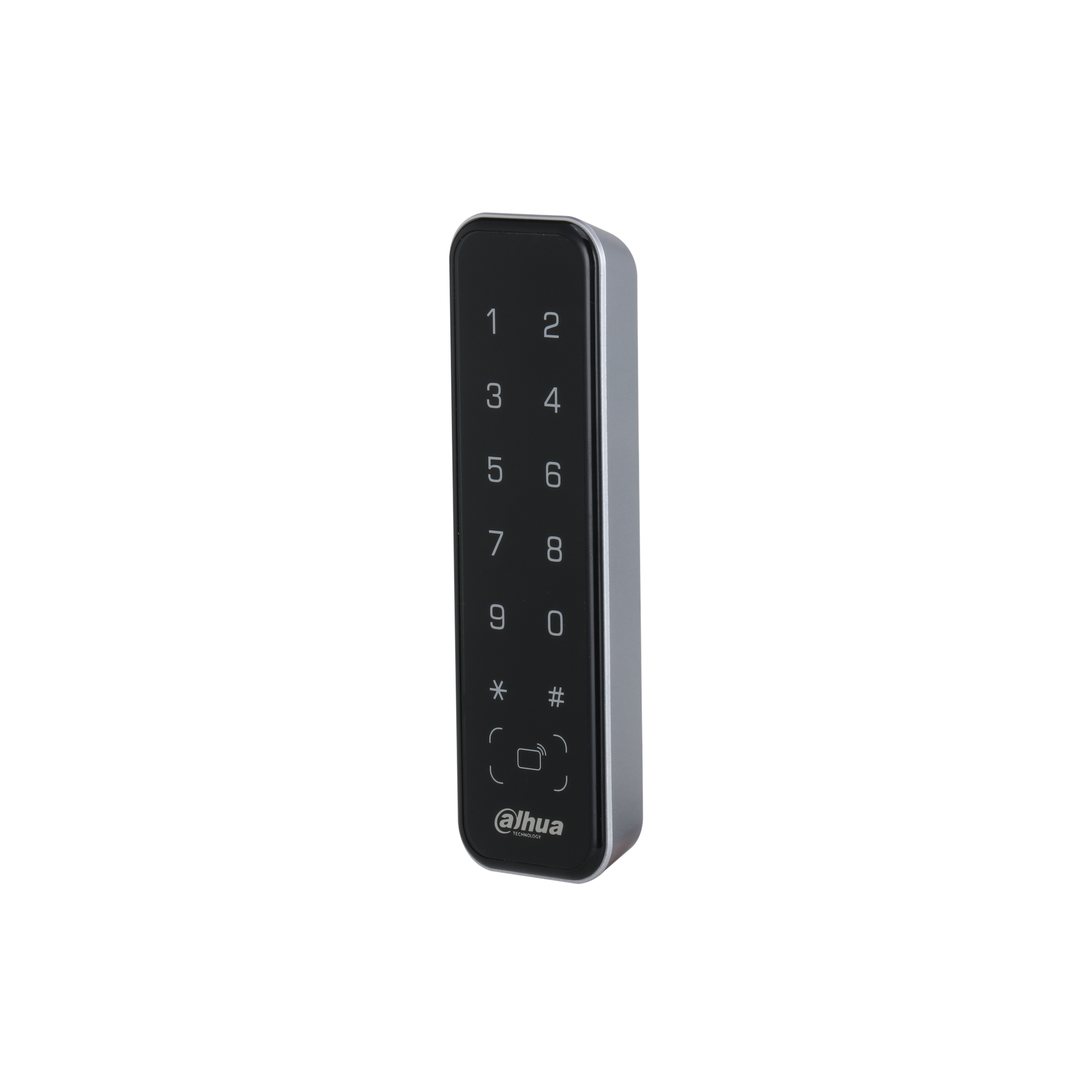

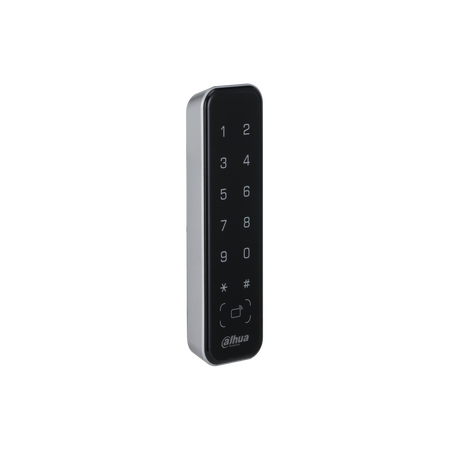

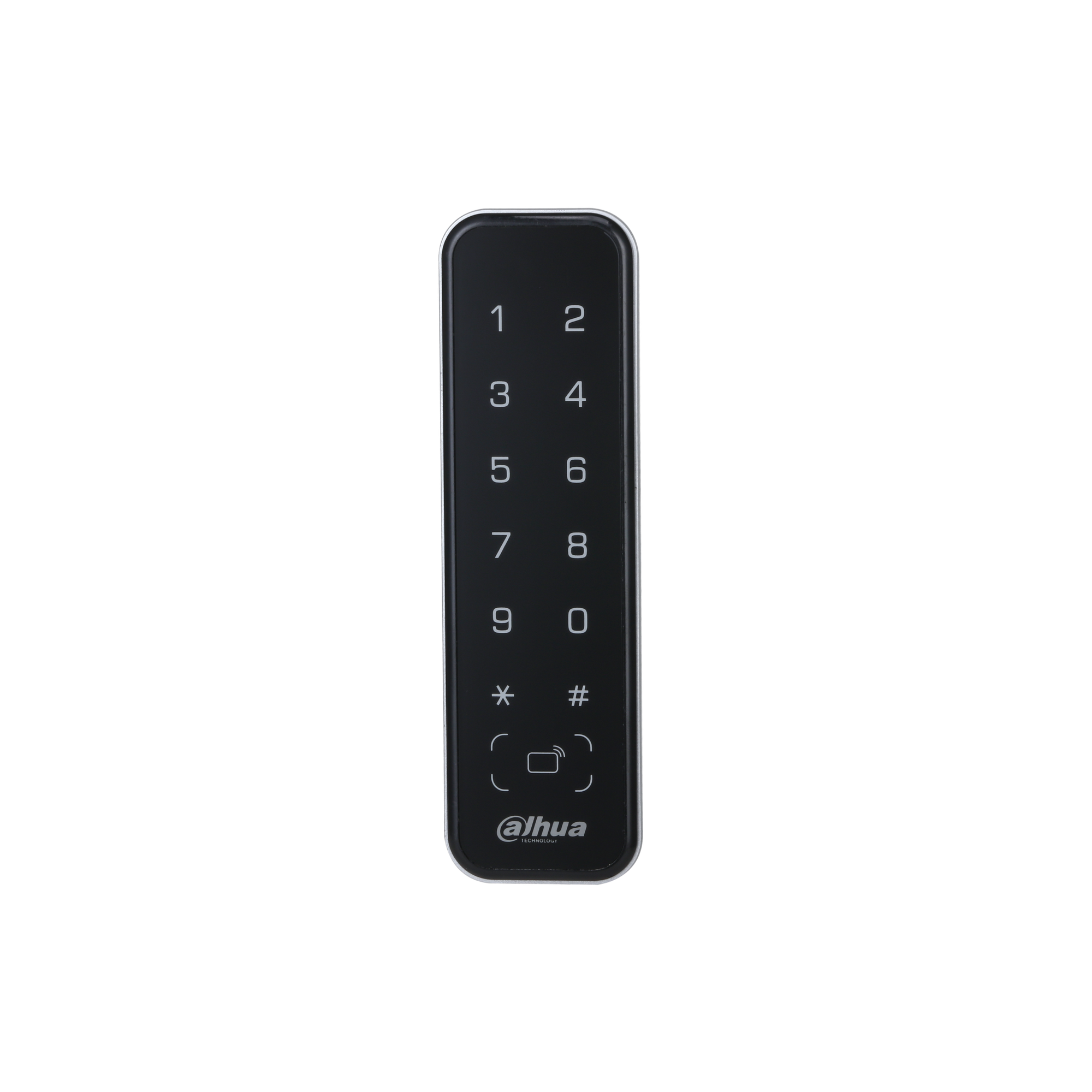

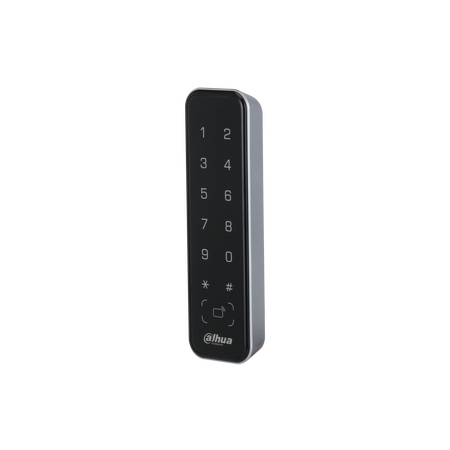

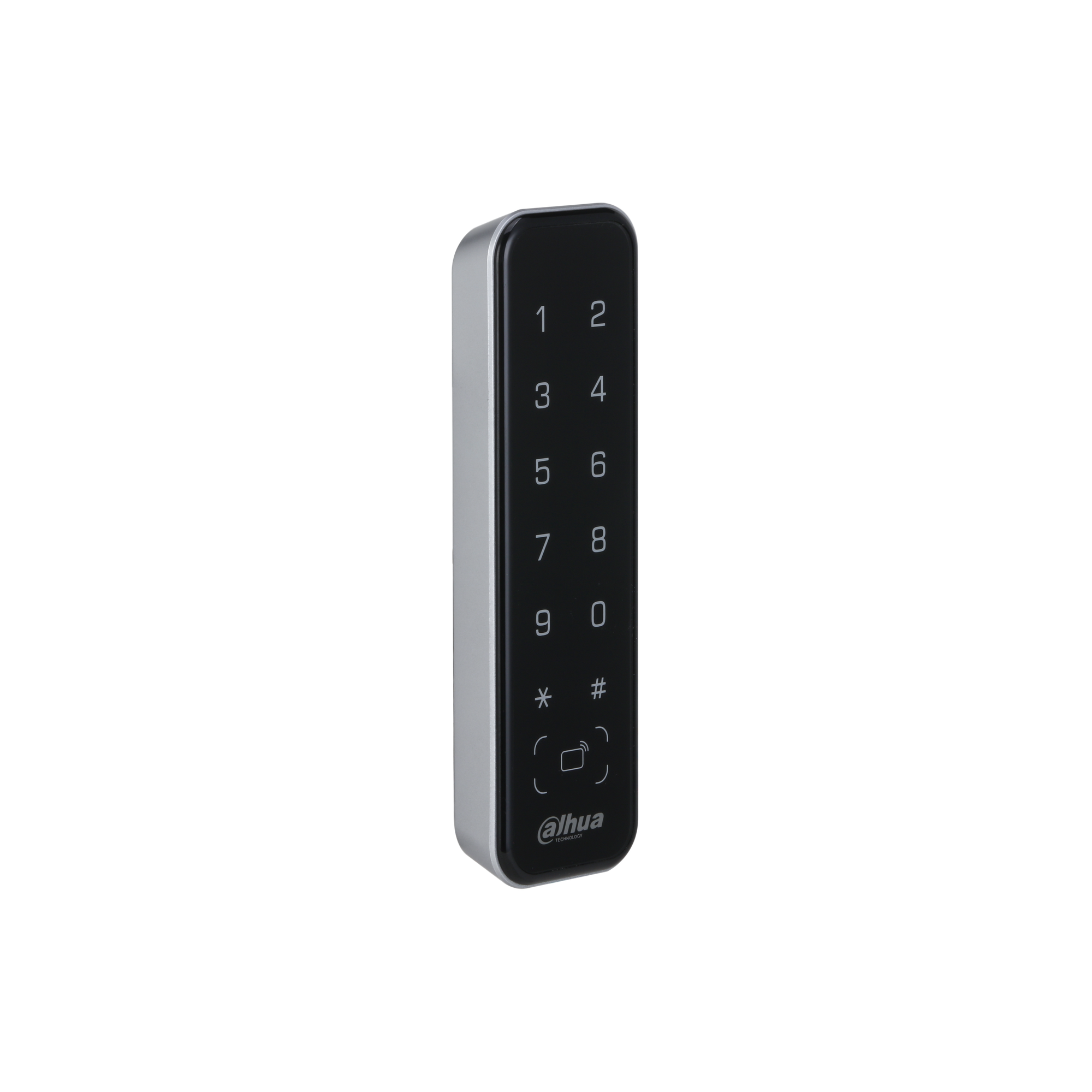

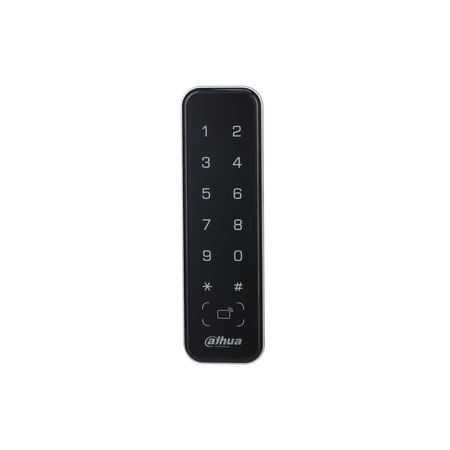

Product Name/Title: Access Control Reader | IP66 Rated | Contactless IC Card Support & Anti-Tampering Alarm | Dahua Technology
Brand: Dahua Technology
SKU: ASR2201A
Alternatively Known As: Dahua Access Reader, ASR2201A RFID Reader, Dahua Contactless Card Reader
Technical Specifications
- Material: PC and tempered glass panel
- Ingress Protection: IP66
- Card Type Supported: IC card (Mifare card)
- Communication Interfaces: RS-485, Wiegand 34 (configurable to Wiegand 26)
- Features: Buzzer and indicator prompt, anti-tampering alarm, built-in watchdog
- Protection: Overcurrent and overvoltage protection on all ports
- Dimensions (H x L x W): 150mm x 25mm x 90mm
- Weight: 0.3 kg
Key Features
- PC material and tempered glass panel with IP66 rating for indoor and outdoor use
- Supports contactless recognition of IC card (Mifare card)
- Supports card unlock functionality
- Communication via RS-485 and Wiegand 34 (configurable to Wiegand 26)
- Buzzer and indicator prompt for user feedback
- Anti-tampering alarm for enhanced security
- Built-in watchdog for detecting and recovering from abnormal operation
- Overcurrent and overvoltage protection on all connection ports
Professional Installation Requirements
- Installation by a qualified security system technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Access control for residential buildings
- Commercial office security
- Industrial facility entry management
- Indoor and outdoor access points
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP66 design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption for energy-efficient operation
Warranty Information
1 year warranty covering manufacturing defects and hardware malfunctions.
Available Now
The Dahua ASR2201A Access Control Reader is available now for immediate purchase. Ideal for enhancing security in residential, commercial, and industrial access control applications.
