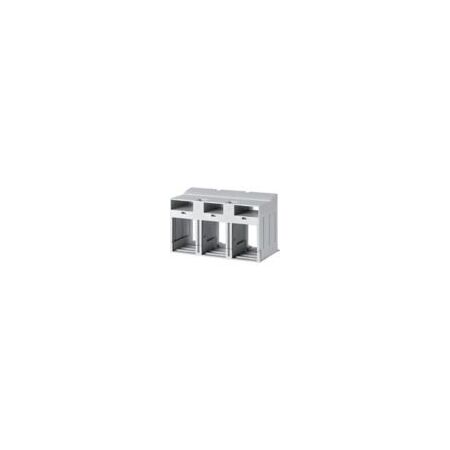

Accessory Terminal Cover for NZM4 Circuit Breakers | Three-Pole Design | Corrosion & UV Resistant | Eaton
This accessory terminal cover for NZM4 circuit breakers features a three-pole design and is built for durability with corrosion and UV resistance. Ideal for electrical panel building and switchgear assembly, it ensures compliance with IEC and UL standards for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Accessory Terminal Cover for NZM4 Circuit Breakers | Three-Pole Design | Corrosion & UV Resistant | Eaton
Brand: Eaton
SKU: Y7-266846
Alternatively Known As: NZM4 Terminal Cover, Molded Case Circuit Breaker Cover, Eaton NZM4 Accessory Cover
Technical Specifications
- Product Name: Eaton Moeller series NZM connection type
- Catalog Number: 266846
- Used with: NZM4, N(S)4 circuit breakers
- Number of poles: Three-pole
- Type: Accessory Terminal cover
- Phase separator type: Other
- Compliances: CE Marked, UL/CSA, IEC, RoHS conform
- Certifications: IEC 60947, UL 489, CE marking, UL (Category Control Number DIHS), CSA-C22.2 No. 5-09, CSA certified, UL listed, CSA (Class No. 1432-01), UL (File No. E31593)
- Meets product standard requirements for corrosion resistance, thermal stability, resistance to UV radiation, and inscriptions
- Dimensions (H x L x W): 130mm x 108mm x 210mm
- Weight: 0.576 kg
Key Features
- Three-pole accessory terminal cover for molded case circuit breakers
- Designed for screw connection
- Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
- Complies with IEC 60947, UL 489, CE marking, UL and CSA certifications
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder familiar with switchgear assembly and electrical safety standards.
Applications
- Electrical panel building and switchgear assembly
- Industrial and commercial electrical protection systems
- Use with NZM4 and N(S)4 circuit breakers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Complies with RoHS standards limiting hazardous substances
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details are provided by Eaton and typically cover manufacturing defects; please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller NZM4-XKSA Molded Case Circuit Breaker Cover is available for immediate purchase, ideal for electrical panel builders and industrial electrical protection applications.
