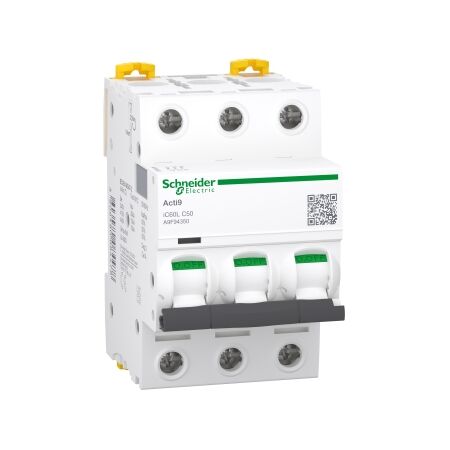

Act9 iC60L 3P 50A MCB | C Curve Tripping | 6kA Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The Act9 iC60L 3P 50A MCB is a reliable miniature circuit breaker designed for effective circuit protection in commercial, industrial, and residential applications. With a C curve tripping characteristic and a high breaking capacity of 6kA at 415V AC, it ensures safety against overloads and short circuits. Its compact modular design allows for easy installation on DIN rails, making it ideal for electrical distribution boards and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Act9 iC60L 3P 50A MCB | C Curve Tripping | 6kA Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94350
Alternatively Known As: Clipsal 3 Pole 50A MCB, Acti9 iC60L 50A Circuit Breaker, SCHA9F94350, Clipsal Miniature Circuit Breaker 3P 50A, Clipsal iC60L 3P 50A MCB
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Poles: 3 (Three-pole)
- Rated Current: 50A
- Tripping Curve: C
- Breaking Capacity: 6kA at 415V AC
- Rated Voltage: 415V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC 60898-1, AS/NZS 60898.1
- Terminal Capacity: 1-25mm²
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 85mm x 78mm x 54mm
- Weight: 0.45 kg
Key Features
- Three-pole (3P) miniature circuit breaker for reliable circuit protection
- Rated current: 50A
- C curve tripping characteristic for protection against overloads and short circuits
- High breaking capacity for enhanced safety
- Compact modular design for easy installation
- Complies with international and Australian standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for circuit protection
- Panel boards in infrastructure and building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Improves electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iC60L 3P 50A MCB (SCHA9F94350) is available for immediate purchase. Ideal for use in commercial, industrial, and residential electrical distribution boards.
