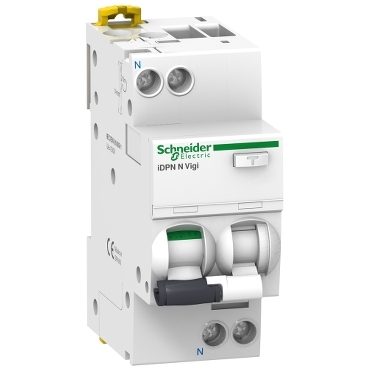

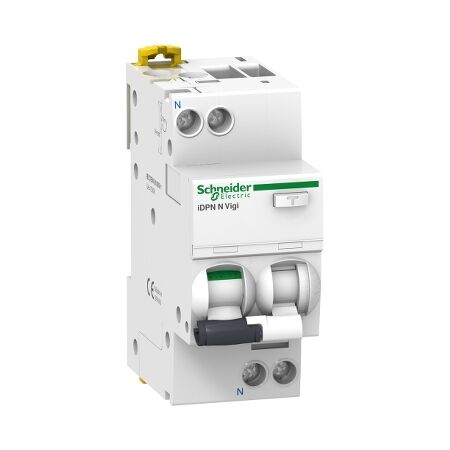

ACTI 9 IDPN N VIGI C 10A 1PPN 30mA SI 60 | 10A Current Rating | C Curve Tripping | DIN Rail Mount | @Pack of 1 | by Clipsal
The ACTI 9 IDPN N VIGI C 10A 1PPN 30mA SI 60 is a combined miniature circuit breaker and residual current device, designed for reliable circuit protection in residential, commercial, and light industrial applications. With a 10A current rating, C curve tripping characteristic, and 30mA sensitivity, it ensures enhanced safety and compliance with AS/NZS standards. Its compact DIN rail mount design and visual trip indicator make installation and fault identification straightforward.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI 9 IDPN N VIGI C 10A 1PPN 30mA SI 60 | 10A Current Rating | C Curve Tripping | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D33610
Alternatively Known As: Clipsal RCBO, Acti 9 RCBO, Clipsal 10A RCBO, SCHA9D33610, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 10A
- Tripping curve: C
- Number of poles: 1P+N
- Residual current sensitivity: 30mA
- Rated voltage: 230V AC
- Breaking capacity: 6000A
- Mounting: DIN rail
- Standard compliance: IEC/EN 61009-1
- Visual trip indicator
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- Combined miniature circuit breaker (MCB) and residual current device (RCD) in one unit
- 10A current rating with C curve tripping characteristic
- 1 pole + neutral (1P+N) configuration
- 30mA residual current sensitivity for personal protection
- Acti 9 Vigi technology for enhanced safety and reliability
- Compact DIN rail mount design
- Visual trip indicator for easy fault identification
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Circuit protection for homes and apartments
- Commercial: Offices, retail, and hospitality electrical distribution boards
- Industrial: Light industrial switchboards requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical safety, reducing risk of fire and electrical accidents
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and light industrial switchboards requiring reliable circuit and residual current protection.
