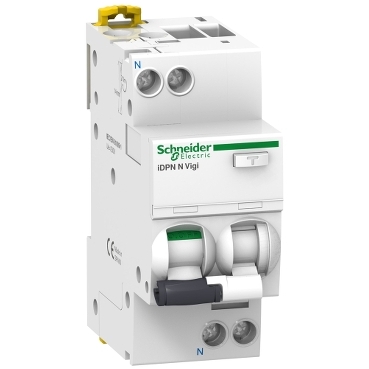

ACTI 9 IDPN N VIGI C 20A 1PPN 30MA SI | 30mA Sensitivity | Compact Design | Visual Trip Indicator | @Pack of 1 | by Clipsal
The ACTI 9 IDPN N VIGI C 20A 1PPN 30MA SI is a reliable residual current circuit breaker designed for residential and commercial electrical distribution. With a 20A current rating and 30mA sensitivity, it provides essential earth leakage protection. Its compact design and visual trip indicator make installation and fault identification easy, ensuring enhanced safety and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI 9 IDPN N VIGI C 20A 1PPN 30MA SI | 30mA Sensitivity | Compact Design | Visual Trip Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D33620
Alternatively Known As: RCBO 20A 1 Pole Neutral, Acti 9 Vigi RCBO, Clipsal SCHA9D33620, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 20A
- Tripping curve: C
- Poles: 1P+N (1 pole + neutral)
- Residual current sensitivity: 30mA
- Rated voltage: 230/240V AC
- Breaking capacity: 6kA
- Mounting: DIN rail
- Standards: IEC/EN 61009-1
- Visual trip indicator
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.15 kg
Key Features
- Combined miniature circuit breaker (MCB) and residual current device (RCD) in one unit
- 20A current rating with C curve tripping characteristic
- 1 pole + neutral (1PPN) configuration
- 30mA sensitivity for earth leakage protection
- Acti 9 Vigi technology for enhanced safety and reliability
- Compact modular design for easy installation
- Visual trip indicator for quick fault identification
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Protection of lighting and power circuits
- Suitable for use in switchboards and consumer units
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces risk of electrical fires and faults, enhancing building safety
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential and commercial switchboards requiring reliable circuit and earth leakage protection.
