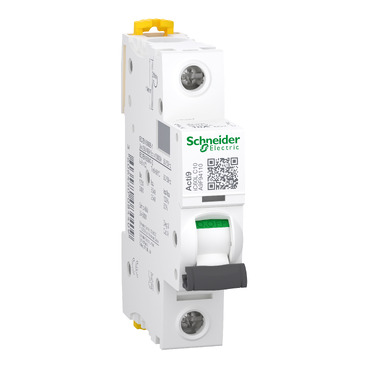

ACTI 9 MCB 1 Pole 10A | 25kA Breaking Capacity | Thermal-Magnetic Trip | by Clipsal
The ACTI 9 MCB 1 Pole 10A is designed for reliable circuit protection with a high breaking capacity of 25kA, making it ideal for residential and commercial electrical distribution boards. This single-pole circuit breaker features a thermal-magnetic trip unit for enhanced safety and complies with IEC/EN 60898-1 standards, ensuring dependable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI 9 MCB 1 Pole 10A | 25kA Breaking Capacity | Thermal-Magnetic Trip | by Clipsal
Brand: Clipsal
SKU: SCHA9F94110
Alternatively Known As: Miniature Circuit Breaker, MCB 10A, Clipsal ACTI 9 1P 10A, SCHA9F94110, Single Pole MCB, 10A Circuit Breaker
Technical Specifications
- Rated current: 10A
- Number of poles: 1
- Breaking capacity: 25kA
- Tripping curve: C
- Rated voltage: 240/415V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 60898-1, AS/NZS 60898.1
- Terminal capacity: 1-25mm²
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- High breaking capacity of 25kA for enhanced safety
- 1 pole, 10A rated current for single-phase applications
- Thermal-magnetic trip unit for reliable circuit protection
- Compact modular design for easy installation
- Complies with IEC/EN 60898-1 and AS/NZS 60898.1 standards
- Suitable for DIN rail mounting
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential electrical distribution boards
- Commercial and industrial switchboards
- Protection of lighting and power circuits
- Panel boards in infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Improves electrical safety, reducing risk of fire and equipment damage
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI 9 MCB 1 Pole 10A 25KA (SCHA9F94110) is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution boards.
