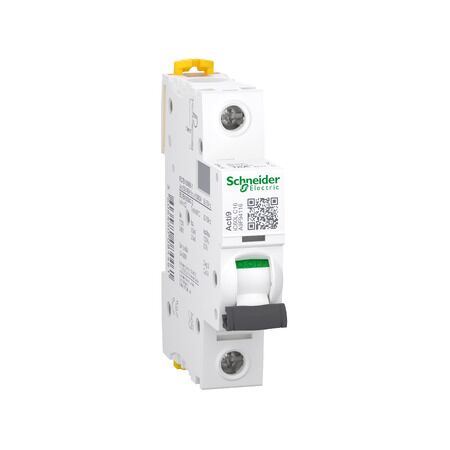

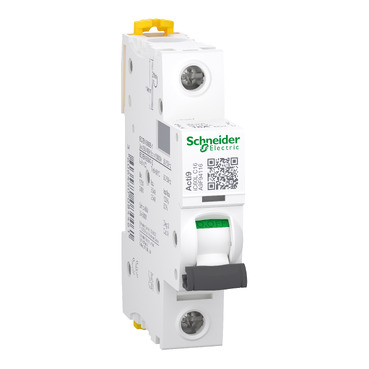

ACTI 9 MCB iC60L 1P 16A C Curve | 15kA Breaking Capacity | DIN Rail Mountable | @Pack of 1 | by Clipsal
The ACTI 9 MCB iC60L 1P 16A C Curve is a reliable miniature circuit breaker designed for residential and commercial electrical distribution. With a high breaking capacity of 15kA and a C curve tripping characteristic, it ensures optimal protection for lighting and power circuits. Quick DIN rail mounting and padlockable toggle enhance safety and ease of installation, making it ideal for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI 9 MCB iC60L 1P 16A C Curve | 15kA Breaking Capacity | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94116
Alternatively Known As: Miniature Circuit Breaker, MCB 16A, Clipsal iC60L, SCHA9F94116, 1 Pole MCB, C Curve Breaker, Acti9 MCB
Technical Specifications
- Rated current: 16A
- Number of poles: 1
- Tripping curve: C
- Breaking capacity: 15kA at 415V AC
- Rated voltage: 240/415V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Toggle position indication: ON/OFF
- Padlockable: Yes
- Standards: IEC/EN 60898-1, AS/NZS 60898.1
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- 1 pole miniature circuit breaker (MCB)
- 16A rated current
- C curve tripping characteristic for general use
- High breaking capacity of 15kA
- Quick and easy DIN rail mounting
- Padlockable toggle for safety
- Clear ON/OFF indication
- Complies with international standards for circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- General circuit protection in buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories – Circuit-breakers for overcurrent protection
Environmental Benefits
- Enables safe and efficient energy distribution, reducing risk of electrical fires.
- Long service life reduces replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI 9 MCB iC60L 1P 16A C Curve 15kA is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution boards.
