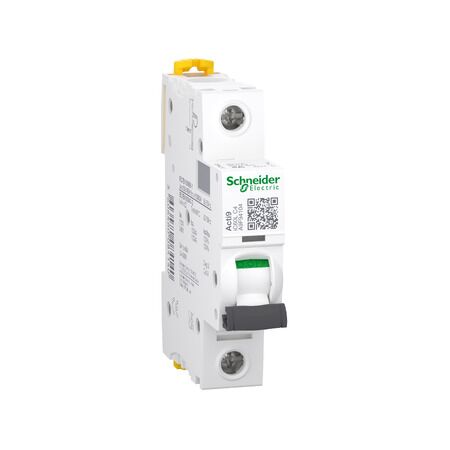

ACTI 9 MCB iC60L 1P 2A C Curve | 15kA Breaking Capacity | DIN Rail Mount | by Clipsal
The ACTI 9 MCB iC60L 1P 2A C Curve is a reliable miniature circuit breaker designed for effective circuit protection in residential and commercial applications. With a high breaking capacity of 15kA and a C Curve tripping characteristic, it efficiently handles moderate inrush currents. Ideal for use in electrical distribution boards and industrial control panels, this robust breaker ensures safety and compliance with local regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI 9 MCB iC60L 1P 2A C Curve | 15kA Breaking Capacity | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9F94102
Alternatively Known As: Miniature Circuit Breaker, MCB 2A, Clipsal iC60L, SCHA9F94102, 1 Pole MCB, C Curve Breaker, Acti9 MCB
Technical Specifications
- Rated current: 2A
- Number of poles: 1P
- Tripping curve: C
- Breaking capacity: 15kA at 415V AC
- Rated voltage: 240/415V AC
- Mounting: DIN rail
- Standards: IEC/EN 60898-1
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Single pole (1P) miniature circuit breaker
- 2A rated current
- C Curve tripping characteristic for moderate inrush currents
- High breaking capacity of 15kA
- Quick and easy DIN rail mounting
- Robust design for reliable circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- General circuit protection in buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires.
- Long service life reduces replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI 9 MCB iC60L 1P 2A C Curve 15kA is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution systems.
