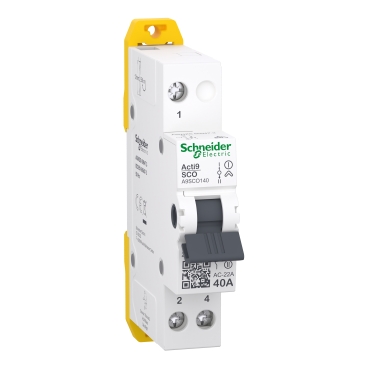

Acti9 Changeover Switch 1P 40A | Manual Switching | Compact DIN Rail Mount | by Clipsal
The Acti9 Changeover Switch 1P 40A is designed for reliable manual switching between two power sources, making it ideal for residential and commercial electrical distribution. With a robust construction and compact DIN rail mount design, this switch ensures long-term durability and efficient power management, perfect for industrial control panels and emergency power changeover applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Changeover Switch 1P 40A | Manual Switching | Compact DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9SCO140
Alternatively Known As: Acti9 1 Pole Changeover Switch, 40A Manual Transfer Switch, SCHA9SCO140, Clipsal Changeover Switch, Acti9 Power Changeover
Technical Specifications
- Poles: 1P (Single Pole)
- Rated Current: 40A
- Rated Voltage: 230/400V AC
- Mounting: DIN rail
- Switching type: Manual changeover
- Terminal capacity: Up to 16mm²
- Operating temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.25 kg
Key Features
- Single pole (1P) changeover switch
- Rated current: 40A
- Reliable manual switching between two power sources
- Compact DIN rail mount design
- Robust construction for long-term durability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Switching between main and backup power supplies
- Industrial control panels
- Emergency power changeover
Standards & Compliance
- Complies with AS/NZS 60947.3 for switchgear and controlgear
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient power management and reduces downtime, supporting energy reliability.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Changeover Switch 1P 40A is available for immediate purchase. Ideal for reliable power source switching in residential, commercial, and industrial settings.
