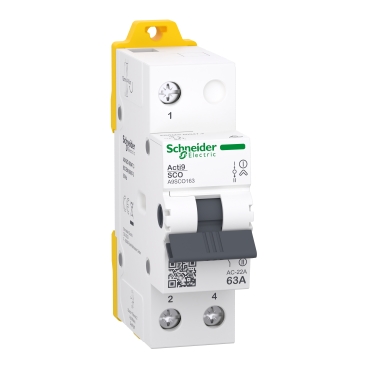

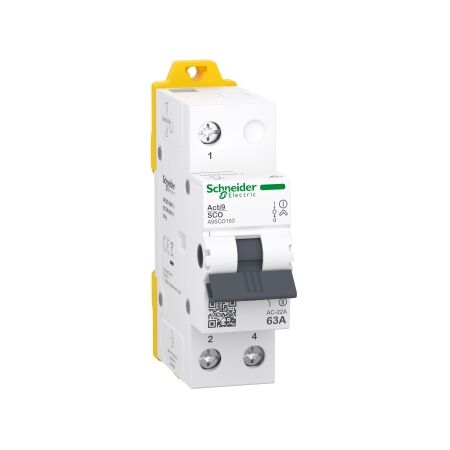

Acti9 Changeover Switch 1P 63A | Robust Design | Easy DIN Rail Installation | Clear ON/OFF Indication | @Pack of 1 | by Clipsal
The Acti9 Changeover Switch 1P 63A is designed for reliable power source selection in residential, commercial, and industrial applications. With a robust design and a 63A current rating, it ensures safety and durability. Easy to install on DIN rail, this switch features clear ON/OFF indication for operational safety, making it ideal for main and sub-main switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Changeover Switch 1P 63A | Robust Design | Easy DIN Rail Installation | Clear ON/OFF Indication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9SCO163
Alternatively Known As: Changeover Switch 63A, Acti9 1P Changeover, Clipsal SCHA9SCO163, Single Pole Changeover Switch, Power Source Selector Switch
Technical Specifications
- Rated Current: 63A
- Number of Poles: 1P (Single Pole)
- Switching Function: Changeover (I-0-II)
- Mounting: DIN rail
- Voltage Rating: 240/415V AC
- Standards: IEC 60947-3
- Terminal Capacity: Up to 25mm²
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.35 kg
Key Features
- Single pole (1P) changeover switch for reliable power source selection
- 63A current rating suitable for a wide range of applications
- Robust Acti9 design for enhanced safety and durability
- Easy installation on DIN rail
- Clear ON/OFF indication for operational safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Main and sub-main switchboards for homes
- Commercial: Office buildings, retail, and hospitality switchboards
- Industrial: Factories, warehouses, and critical infrastructure requiring reliable power source switching
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient management of backup and main power sources, reducing downtime and energy waste.
- Durable construction ensures long service life, minimizing replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Changeover Switch 1P 63A (SCHA9SCO163) is available for immediate purchase. Ideal for reliable power source switching in residential, commercial, and industrial switchboards.
