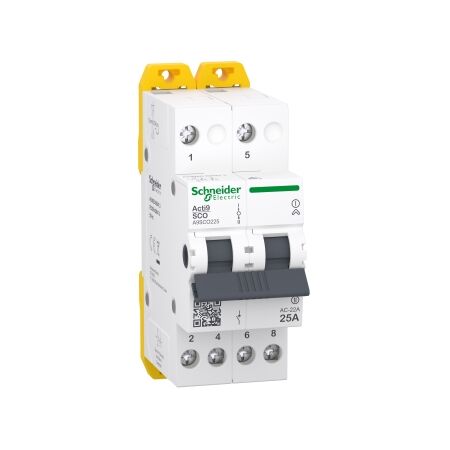

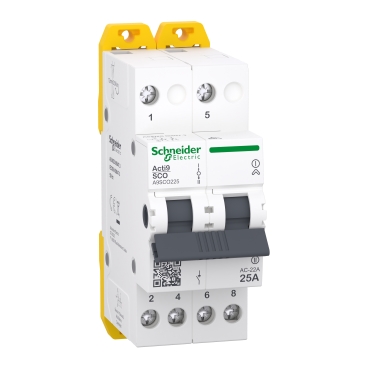

Acti9 Changeover Switch 2P 25A | Manual Operation | Compact DIN Rail Design | by Clipsal
The Acti9 Changeover Switch 2P 25A is designed for safe power source switching, featuring a robust manual operation and a compact DIN rail mount for easy installation. Ideal for residential and commercial electrical distribution boards, this switch ensures reliable main and backup power selection, making it perfect for industrial control panels and emergency power changeover.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Changeover Switch 2P 25A | Manual Operation | Compact DIN Rail Design | by Clipsal
Brand: Clipsal
SKU: SCHA9SCO225
Alternatively Known As: Acti9 2 Pole Changeover Switch, Clipsal Changeover Switch 25A, SCHA9SCO225, Acti9 Manual Transfer Switch, 2P 25A Changeover Switch
Technical Specifications
- Poles: 2 (Double Pole)
- Rated Current: 25A
- Rated Voltage: 230/400V AC
- Mounting: DIN rail
- Switching Mode: Manual
- Standards: IEC 60947-3
- Terminal Capacity: Up to 10mm²
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Double pole (2P) changeover switch for safe power source switching
- 25A current rating suitable for various load requirements
- Compact DIN rail mount design for easy installation
- Reliable manual operation for main/backup power selection
- Robust construction for long-term durability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Switching between main and backup power supplies
- Industrial control panels
- Emergency power changeover
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient management of backup power, reducing downtime and energy waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Changeover Switch 2P 25A (SCHA9SCO225) is available for immediate purchase. Ideal for electrical distribution boards requiring safe and reliable power source switching.
