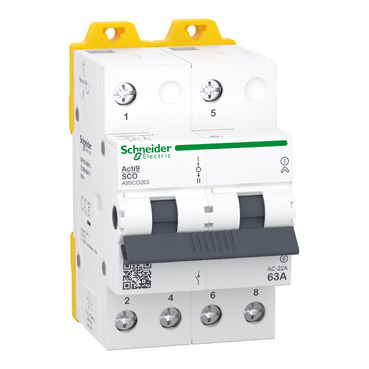

Acti9 Changeover Switch 2P 63A | Manual Transfer Switch | DIN Rail Mount | by Clipsal
The Acti9 Changeover Switch 2P 63A is designed for reliable power source switching, featuring a double pole design for safe isolation and a 63A current rating. Ideal for residential, commercial, and light industrial applications, this manual transfer switch ensures efficient use of backup power sources while its compact DIN rail mount allows for easy installation in distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Changeover Switch 2P 63A | Manual Transfer Switch | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9SCO263
Alternatively Known As: Changeover Switch, Manual Transfer Switch, 2 Pole Changeover Switch, 63A Changeover Switch, Acti9 SCHA9SCO263
Technical Specifications
- Poles: 2 (Double Pole)
- Rated Current: 63A
- Rated Voltage: 230/400V AC
- Mounting: DIN rail
- Switching Mode: Manual
- Frequency: 50/60Hz
- Terminal Capacity: Up to 25mm²
- Standards: IEC 60947-3
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.45 kg
Key Features
- Double pole (2P) design for safe isolation of both live and neutral conductors
- 63A current rating suitable for a wide range of applications
- Reliable manual changeover between two power sources
- Compact DIN rail mount for easy installation in distribution boards
- Robust construction for long-term durability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Backup power switching between mains and generator
- Commercial: Small business and retail power source changeover
- Industrial: Light industrial equipment requiring dual power sources
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient use of backup power sources, reducing downtime and energy waste
- Durable design minimizes replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Changeover Switch 2P 63A (SCHA9SCO263) is available for immediate purchase. Ideal for reliable power source switching in residential, commercial, and light industrial settings.
