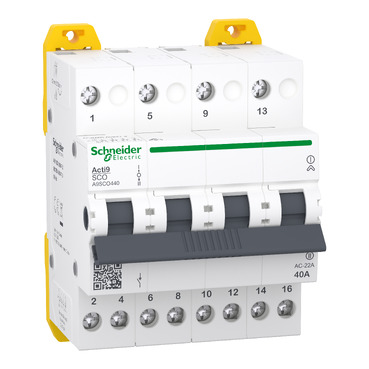

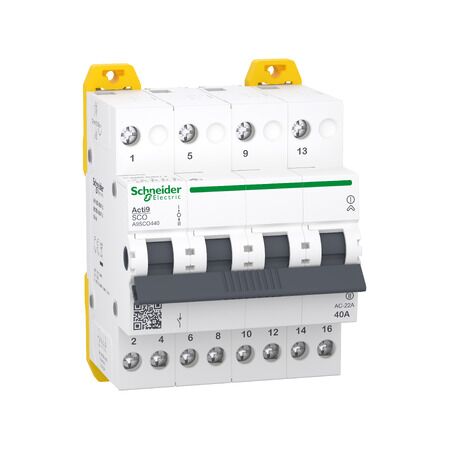

Acti9 Changeover Switch 4P 40A | Manual Operation | Compact DIN Rail Design | Clear ON/OFF Indication | @Each of 1 | by Clipsal
The Acti9 Changeover Switch 4P 40A is designed for reliable power source switching, featuring a manual operation mode and a compact DIN rail design. Ideal for residential, commercial, and industrial applications, it ensures safe and efficient backup power management with clear ON/OFF indications for user safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Changeover Switch 4P 40A | Manual Operation | Compact DIN Rail Design | Clear ON/OFF Indication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9SCO440
Alternatively Known As: 4 Pole Changeover Switch, Acti9 40A Changeover, Manual Transfer Switch, SCHA9SCO440, Clipsal Changeover Switch
Technical Specifications
- Number of Poles: 4P
- Rated Current: 40A
- Rated Voltage: 400/415VAC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Switching Mode: Manual
- Standards: IEC 60947-3
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.7 kg
Key Features
- 4 pole (4P) design for three-phase and neutral switching
- Rated current: 40A
- Voltage rating: 400/415VAC
- Reliable manual changeover operation
- Compact Acti9 modular design for easy DIN rail mounting
- Clear ON/OFF indication for safe operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential: Backup power switching between mains and generator
- Commercial: Power source changeover for small businesses and offices
- Industrial: Control panels, distribution boards, and machinery requiring dual power sources
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60947 – Low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient use of backup power sources, reducing downtime and energy waste
- Durable construction ensures long service life, minimizing replacement frequency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Changeover Switch 4P 40A (SCHA9SCO440) is available for immediate purchase. Ideal for reliable power source switching in residential, commercial, and industrial settings.
