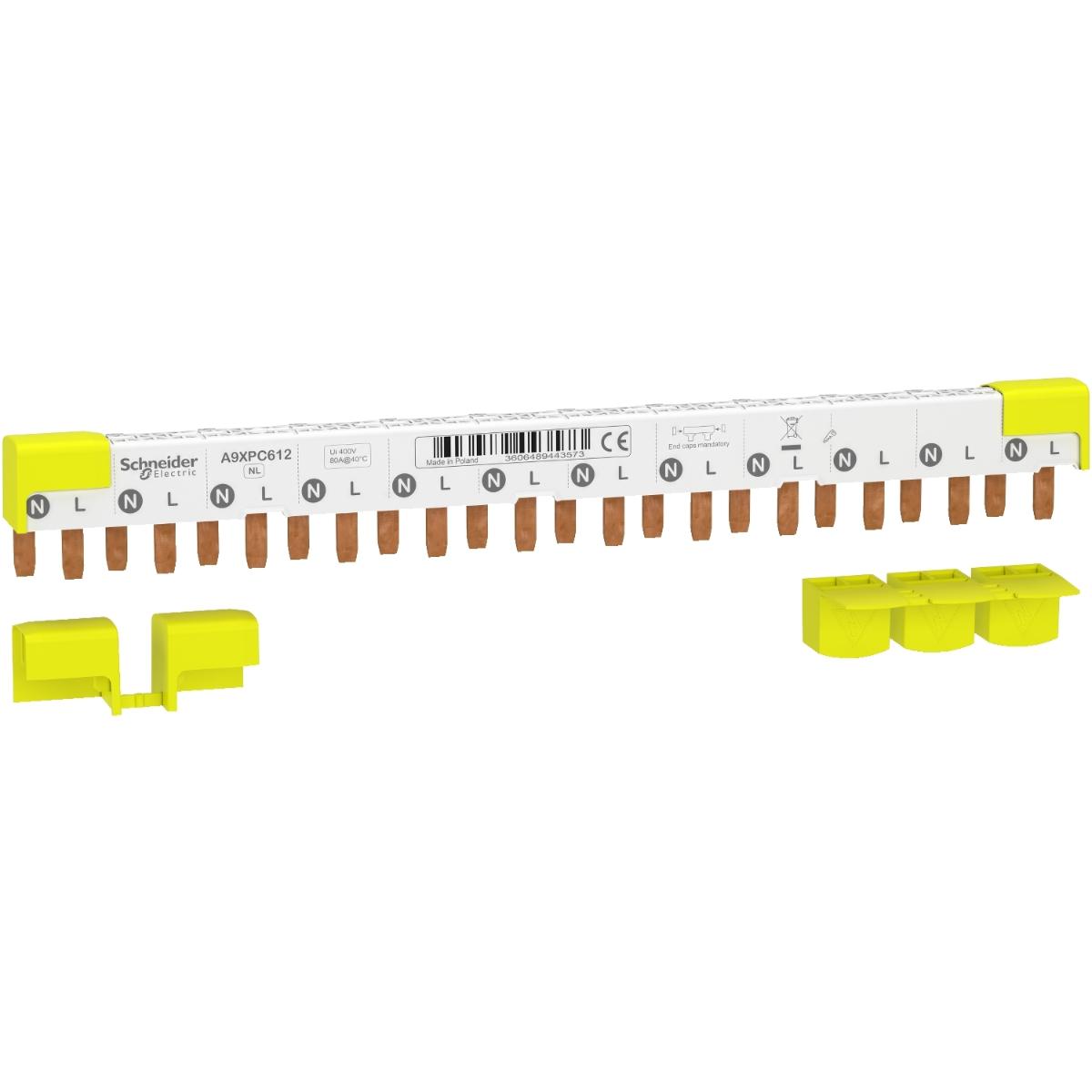

Acti9 Comb Busbar iC40 1PN 12 Mod. 18mm | 80A Rated Current | Fully Insulated | White | by Clipsal
The Acti9 Comb Busbar iC40 1PN 12 Mod. 18mm is designed for efficient power distribution in modular switchboards. With a rated current of 80A and a fully insulated design, it ensures safe and reliable connections for residential, commercial, and light industrial applications. Ideal for quick installation, this busbar reduces copper waste and improves energy efficiency by minimizing connection losses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Comb Busbar iC40 1PN 12 Mod. 18mm | 80A Rated Current | Fully Insulated | White | by Clipsal
Brand: Clipsal
SKU: SCHA9XPC612
Alternatively Known As: Acti9 busbar, Schneider A9XPC612, 1PN comb busbar, modular busbar, Clipsal comb busbar, 12 module busbar
Technical Specifications
- Type: Comb busbar
- Range: Acti9
- Model: iC40 1PN
- Number of modules: 12 (18mm pitch)
- Rated current: 80A
- Rated voltage: 230/400V AC
- Configuration: 1 phase + neutral (1PN)
- Insulation: Yes, fully insulated
- Colour: White
- Dimensions (H x L x W): 40mm x 216mm x 18mm
- Weight: 0.25 kg
Key Features
- Compatible with Acti9 iC40 and other modular devices
- 1 phase + neutral (1PN) configuration
- 12 module capacity (18mm pitch)
- Rated current: 80A
- Ensures safe and reliable distribution of power
- Quick and easy installation
- High-quality insulated design for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Distribution boards in residential, commercial, and light industrial electrical installations
- Ideal for modular circuit breaker and protection device connection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces copper waste by replacing multiple cables with a single busbar
- Improves energy efficiency by minimizing connection losses
- Supports modular, upgradeable electrical installations
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Comb Busbar iC40 1PN 12 Mod. 18mm (SCHA9XPC612) is available for immediate purchase. Ideal for modular switchboards in residential, commercial, and light industrial applications.
