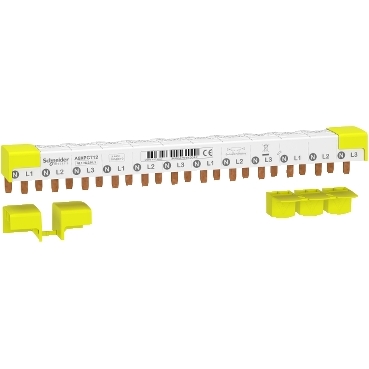

Acti9 Comb Busbar iC40 3PN 12 Mod 18mm | 63A Rated Current | Copper Construction | Finger-Safe Design | by Clipsal
The Acti9 Comb Busbar iC40 3PN 12 Mod 18mm is designed for efficient power distribution in residential, commercial, and light industrial applications. With a robust 63A rated current and a finger-safe IP20 design, this modular busbar ensures safe and reliable connections for multiple circuit breakers. Its high-quality copper construction guarantees optimal conductivity, making installation quick and easy for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Comb Busbar iC40 3PN 12 Mod 18mm | 63A Rated Current | Copper Construction | Finger-Safe Design | by Clipsal
Brand: Clipsal
SKU: SCHA9XPC712
Alternatively Known As: Acti9 busbar, iC40 comb busbar, Clipsal 3PN busbar, 12 module busbar, SCHA9XPC712, modular busbar, Acti9 distribution comb
Technical Specifications
- Type: Comb busbar
- Series: Acti9 iC40
- Configuration: 3 phase + neutral (3PN)
- Number of modules: 12 (18mm pitch)
- Material: Copper with insulated cover
- Rated current: 63A
- Rated voltage: 415V AC
- Finger-safe: Yes (IP20)
- Standards: IEC 61439-1/2
- Dimensions (H x L x W): 40mm x 30mm x 216mm
- Weight: 0.45 kg
Key Features
- Compatible with Acti9 iC40 circuit breakers
- 3 phase + neutral (3PN) configuration
- 12 module (18mm pitch) capacity
- Ensures safe and reliable distribution of power
- Quick and easy installation with modular design
- High-quality copper construction for optimal conductivity
- Finger-safe design for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Distribution boards in residential, commercial, and light industrial installations
- Panel boards for modular circuit protection devices
- Electrical switchboards requiring safe and efficient connection of multiple circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces copper waste by replacing multiple cables with a single busbar
- Improves energy efficiency by minimizing connection losses
- Supports modular switchboard designs for easier upgrades and maintenance
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Comb Busbar iC40 3PN 12 Mod 18mm (SCHA9XPC712) is available for immediate purchase. Ideal for use in residential, commercial, and industrial switchboards requiring modular and safe power distribution.
