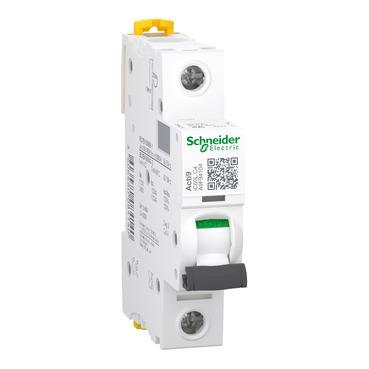

ACTI9 IC60L 1P 4A C MCB | 6000A Breaking Capacity | DIN Rail Mount | by Clipsal
The ACTI9 IC60L 1P 4A C MCB is a reliable miniature circuit breaker designed for effective circuit protection in residential and commercial applications. With a high breaking capacity of 6000A at 230/400V AC and a C curve tripping characteristic, it ensures safety and compliance with IEC/EN 60898-1 standards. Quick DIN rail mounting and a padlockable toggle enhance its usability, making it ideal for electricians and contractors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI9 IC60L 1P 4A C MCB | 6000A Breaking Capacity | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9F94104
Alternatively Known As: Miniature Circuit Breaker, MCB 4A, Clipsal IC60L, Acti9 MCB, SCHA9F94104, 1 Pole MCB, 4 Amp MCB, Circuit Breaker 4A
Technical Specifications
- Number of Poles: 1
- Rated Current: 4A
- Tripping Curve: C
- Breaking Capacity: 6000A at 230/400V AC
- Rated Voltage: 230/400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 60898-1
- Toggle Position Indicator: Yes
- Padlockable: Yes
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Single pole (1P) miniature circuit breaker
- Rated current: 4A
- C curve tripping characteristic for general applications
- High breaking capacity: 6000A at 230/400V AC
- Quick and easy DIN rail mounting
- Padlockable toggle for safety
- Clear ON/OFF indication
- Complies with IEC/EN 60898-1 standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Lighting and power circuit protection
- Sub-circuit protection in switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical faults
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI9 IC60L 1P 4A C Curve MCB (SCHA9F94104) is available for immediate purchase. Ideal for protecting electrical circuits in residential, commercial, and industrial switchboards.
