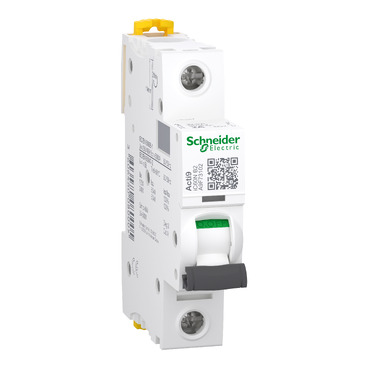

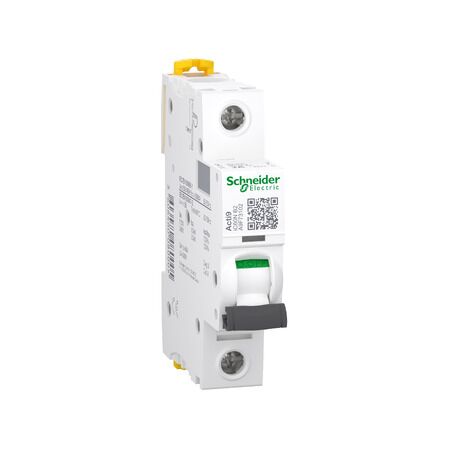

Acti9 iC60L 1P B 2A MCB | 6000A Breaking Capacity | Quick DIN Rail Mounting | by Clipsal
The Acti9 iC60L 1P B 2A MCB is a miniature circuit breaker designed for reliable circuit protection in residential and commercial applications. With a 2A rated current and a high breaking capacity of 6000A, it ensures safety and performance. Ideal for electrical distribution boards and industrial control panels, this MCB features a clear ON/OFF indication for operational safety and quick DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iC60L 1P B 2A MCB | 6000A Breaking Capacity | Quick DIN Rail Mounting | by Clipsal
Brand: Clipsal
SKU: SCHA9F93102
Alternatively Known As: Miniature Circuit Breaker, MCB 2A, Acti9 iC60N 2A, Clipsal 2A MCB, SCHA9F93102, Single Pole MCB
Technical Specifications
- Rated current: 2A
- Number of poles: 1
- Tripping curve: B
- Breaking capacity: 6000A (IEC/EN 60898-1), 50kA (IEC/EN 60947-2)
- Rated voltage: 230/400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 60898-1, IEC/EN 60947-2
- Acti9 iC60N series
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Miniature circuit breaker (MCB) for reliable circuit protection
- 1 pole, 2A rated current, B curve tripping characteristic
- High breaking capacity: 6000A (IEC/EN 60898-1), 50kA (IEC/EN 60947-2)
- Quick and easy DIN rail mounting
- Acti9 iC60N series for enhanced safety and performance
- Clear ON/OFF indication for operational safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Lighting and power circuit protection
- Sub-circuit protection in buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iC60L 1P B 2A MCB is available for immediate purchase. Ideal for protecting electrical circuits in residential, commercial, and industrial environments.
