Trade Discount 20%

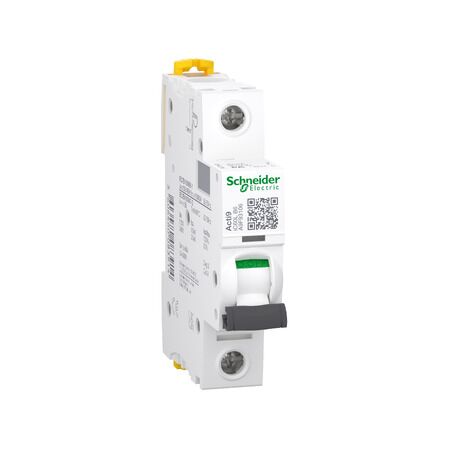

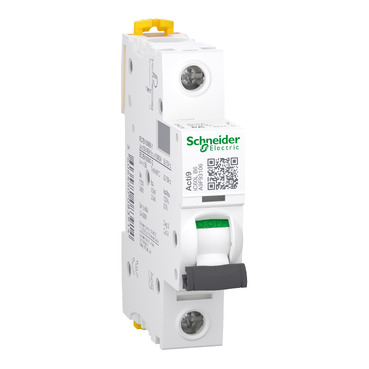

Acti9 iC60L 1P B 6A MCB | Miniature Circuit Breaker | 15kA Breaking Capacity | Quick DIN Rail Mounting | @Pack of 1 | by Clipsal
The Acti9 iC60L 1P B 6A MCB is a reliable miniature circuit breaker designed for effective circuit protection in residential and commercial electrical systems. With a 6A rated current and a high breaking capacity of 15kA, it ensures safety against overloads and short circuits. Ideal for licensed electricians, this MCB features a B curve tripping characteristic and quick DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iC60L 1P B 6A MCB | Miniature Circuit Breaker | 15kA Breaking Capacity | Quick DIN Rail Mounting | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F93106
Alternatively Known As: 6A MCB, Single Pole MCB, Clipsal Acti9 MCB, iC60L 6A Circuit Breaker, SCHA9F93106
Technical Specifications
- Rated current: 6A
- Number of poles: 1P
- Tripping curve: B
- Breaking capacity: 15kA (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)
- Rated voltage: 230/400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 60898-1, IEC/EN 60947-2
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Miniature circuit breaker (MCB) for reliable circuit protection
- 1 pole (1P) configuration
- 6A rated current
- B curve tripping characteristic for protection of cable and equipment
- High breaking capacity: 15kA (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)
- Acti9 iC60L series for enhanced safety and performance
- Quick and easy DIN rail mounting
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Lighting and power circuits
- Protection of electrical installations against overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iC60L 1P B 6A MCB (SCHA9F93106) is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution systems.
