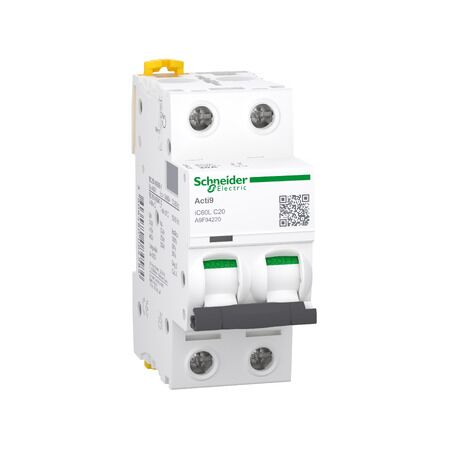

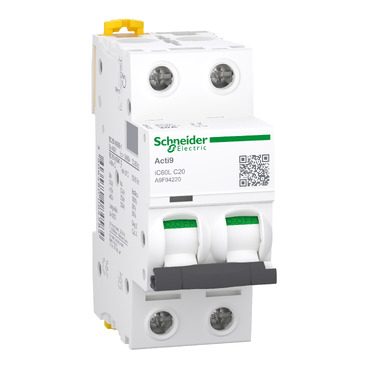

ACTI9 IC60L 2P 20A C Curve MCB | 6000A Breaking Capacity | DIN Rail Mount | by Clipsal
The ACTI9 IC60L 2P 20A C Curve MCB is a reliable miniature circuit breaker designed for enhanced circuit protection in residential and commercial applications. With a high breaking capacity of 6000A and C curve tripping characteristics, it ensures safety and compliance with IEC/EN 60898-1 standards. Ideal for electrical distribution boards and switchboards, this MCB features a padlockable toggle for added safety during maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI9 IC60L 2P 20A C Curve MCB | 6000A Breaking Capacity | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9F94220
Alternatively Known As: Miniature Circuit Breaker, 2 Pole MCB, 20A MCB, Clipsal IC60L, SCHA9F94220, Acti9 MCB, Circuit Breaker 20A 2P
Technical Specifications
- Number of Poles: 2
- Rated Current: 20A
- Tripping Curve: C
- Breaking Capacity: 6000A (IEC/EN 60898-1)
- Rated Voltage: 240/415V AC
- Mounting: DIN rail
- Toggle Position Indicator: Yes
- Padlockable: Yes
- Standards: IEC/EN 60898-1
- Dimensions (H x L x W): 85mm x 78mm x 36mm
- Weight: 0.25 kg
Key Features
- 2-pole miniature circuit breaker for enhanced circuit protection
- 20A rated current with C curve tripping characteristics for general applications
- High breaking capacity (up to 6000A)
- Quick and easy DIN rail mounting
- Padlockable toggle for added safety during maintenance
- Clear ON/OFF indication window
- Complies with IEC/EN 60898-1 standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- Switchboards in offices, retail, and public buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI9 IC60L 2P 20A C Curve MCB (SCHA9F94220) is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution systems.
