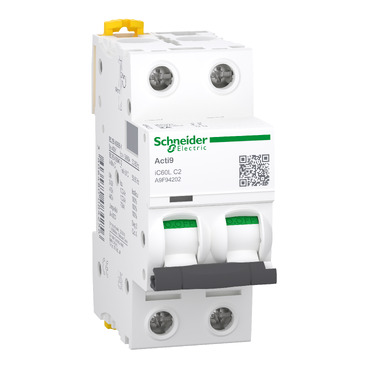

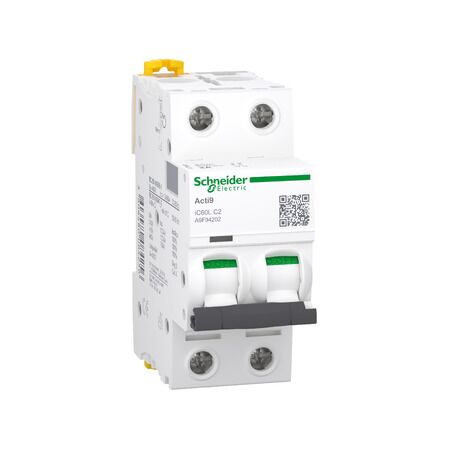

ACTI9 IC60L 2P 2A C MCB | 6000A Breaking Capacity | DIN Rail Mount | by Clipsal
The ACTI9 IC60L 2P 2A C MCB is a reliable miniature circuit breaker designed for double pole protection in residential and commercial electrical systems. With a high breaking capacity of 6000A and a C curve tripping characteristic, it ensures precise circuit protection. Ideal for use in distribution boards and switchboards, this robust and compact MCB is easy to install on DIN rails, making it a perfect choice for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI9 IC60L 2P 2A C MCB | 6000A Breaking Capacity | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9F94202
Alternatively Known As: Miniature Circuit Breaker, 2 Pole MCB, Clipsal IC60L MCB, SCHA9F94202, Acti9 MCB, 2A MCB, Double Pole Circuit Breaker
Technical Specifications
- Number of Poles: 2
- Rated Current: 2A
- Tripping Curve: C
- Breaking Capacity: 6000A (IEC/EN 60898-1)
- Rated Voltage: 230/400V AC
- Mounting: DIN rail
- Terminal Capacity: 1-25mm²
- IP Rating: IP20 (when installed)
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 85mm x 78mm x 36mm
- Weight: 0.25 kg
Key Features
- 2 pole (2P) miniature circuit breaker for double pole protection
- 2A rated current for precise circuit protection
- C curve tripping characteristic for general applications
- High breaking capacity (up to 6000A)
- Quick and easy DIN rail mounting
- Clear ON/OFF indication for safety
- Robust and compact design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- Switchboards in commercial buildings
Standards & Compliance
- Complies with AS/NZS 60898.1 for circuit breakers
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves electrical safety, reducing risk of fire and electrical faults
- Long operational life reduces replacement frequency and waste
- RoHS compliant, minimizing hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI9 IC60L 2P 2A C Curve MCB (SCHA9F94202) is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution boards.
