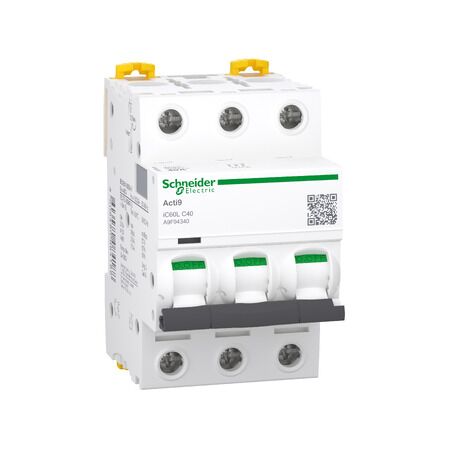

Acti9 iC60L 3P C 40A MCB | C Curve Tripping | 6kA Breaking Capacity | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Acti9 iC60L 3P C 40A MCB is a three-pole miniature circuit breaker designed for reliable circuit protection in commercial, industrial, and residential applications. With a C curve tripping characteristic and a high breaking capacity of 6kA at 415V AC, it ensures safety and efficiency in electrical distribution. Quick DIN rail mounting and a padlockable toggle enhance its usability and safety features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iC60L 3P C 40A MCB | C Curve Tripping | 6kA Breaking Capacity | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94340
Alternatively Known As: 3 Pole 40A MCB, Acti9 iC60L 40A Circuit Breaker, Clipsal 3P MCB, SCHA9F94340, 40A C Curve Breaker
Technical Specifications
- Number of Poles: 3
- Rated Current: 40A
- Tripping Curve: C
- Breaking Capacity: 6kA at 415V AC
- Rated Voltage: 415V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Toggle Position Indicator: Yes
- Padlockable: Yes
- Standards: IEC 60898-1, AS/NZS 60898.1
- Dimensions (H x L x W): 85mm x 78mm x 54mm
- Weight: 0.45 kg
Key Features
- Three-pole (3P) miniature circuit breaker for reliable circuit protection
- C curve tripping characteristic for protection of general circuits
- Rated current: 40A
- High breaking capacity: 6kA at 415V AC
- Quick and easy DIN rail mounting
- Padlockable toggle for enhanced safety
- Clear ON/OFF indication window
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for circuit protection
- Panel boards in infrastructure and public buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires and equipment damage.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iC60L 3P C 40A MCB (SCHA9F94340) is available for immediate purchase. Ideal for commercial, industrial, and residential circuit protection applications.
