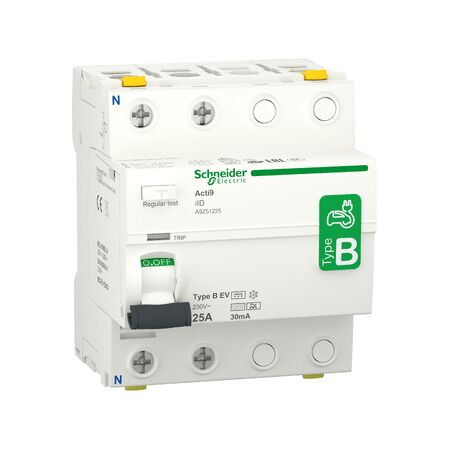

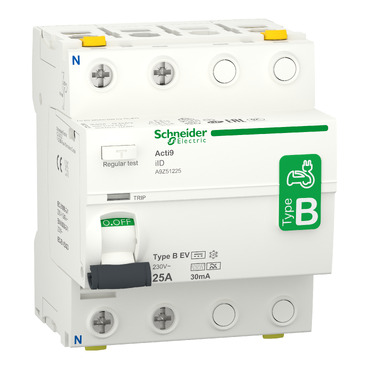

Acti9 iID 2P 25A 30mA B EV RCCB | Type B for EV Charging | Quick Disconnection | Compact Design | @Pack of 1 | by Clipsal
The Acti9 iID 2P 25A 30mA B EV RCCB is designed for electric vehicle charging applications, providing high sensitivity to AC and DC residual currents. Ideal for residential and commercial electrical distribution, this compact circuit breaker ensures quick disconnection in case of earth leakage faults, enhancing safety and compliance with local regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 2P 25A 30mA B EV RCCB | Type B for EV Charging | Quick Disconnection | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9Z51225
Alternatively Known As: Clipsal RCCB, Acti9 iID RCCB, 2 Pole 25A RCCB, Type B EV RCCB, Residual Current Circuit Breaker for EV, SCHA9Z51225
Technical Specifications
- Number of Poles: 2
- Rated Current: 25A
- Rated Residual Operating Current: 30mA
- Type: B EV (sensitive to AC, pulsating DC, and smooth DC)
- Rated Voltage: 230/400V AC
- Frequency: 50/60Hz
- Breaking Capacity: 10kA
- Mounting: DIN rail
- Terminal Capacity: 1-25mm²
- IP Rating: IP20 (when installed in enclosure)
- Operating Temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- 2-pole residual current circuit breaker (RCCB)
- Rated current: 25A
- Rated residual operating current: 30mA
- Type B EV: suitable for electric vehicle charging applications
- High sensitivity to AC, pulsating DC, and smooth DC residual currents
- Quick and reliable disconnection in case of earth leakage faults
- Compact Acti9 modular design for easy installation
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Electric vehicle (EV) charging circuits
- Industrial installations requiring earth leakage protection
- General power and lighting circuits
Standards & Compliance
- Complies with AS/NZS 61008.1 for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports safe integration of electric vehicle charging infrastructure
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iID 2P 25A 30mA B EV RCCB (SCHA9Z51225) is available for immediate purchase. Ideal for residential, commercial, and EV charging safety applications.
