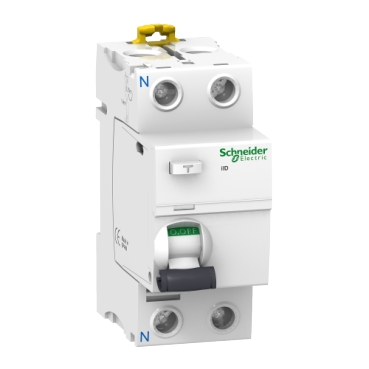

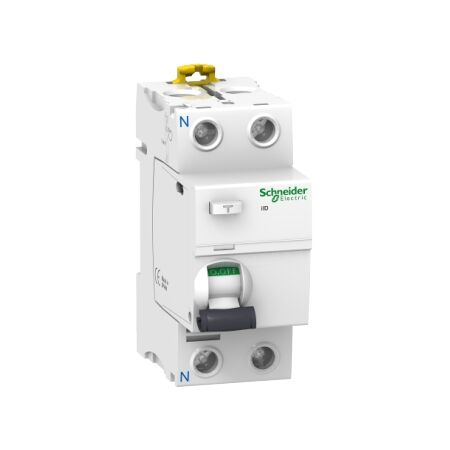

Acti9 iID 2P 40A 100mA A RCCB | Type A Sensitivity | DIN Rail Mountable | Compact Design | @Pack of 1 | by Clipsal
The Acti9 iID 2P 40A 100mA A RCCB is a reliable residual current circuit breaker designed for electrical safety in residential, commercial, and light industrial applications. With Type A sensitivity, it detects AC and pulsating DC earth leakage currents, ensuring quick disconnection in case of faults. Its compact design allows for easy installation on DIN rails, making it an ideal choice for protecting electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 2P 40A 100mA A RCCB | Type A Sensitivity | DIN Rail Mountable | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R22240
Alternatively Known As: Clipsal RCCB, Residual Current Circuit Breaker, Acti9 iID RCCB, 40A 100mA RCCB, SCHA9R22240
Technical Specifications
- Number of Poles: 2
- Rated Current: 40A
- Rated Residual Operating Current: 100mA
- Type: A (AC and pulsating DC sensitivity)
- Rated Voltage: 230/400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Breaking Capacity: 6000A
- IP Rating: IP20 (when installed in enclosure)
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- 2 pole (2P) residual current circuit breaker (RCCB)
- Rated current: 40A
- Rated residual operating current: 100mA
- Type A: Detects AC and pulsating DC earth leakage currents
- Quick and reliable disconnection in case of earth fault
- Compact Acti9 modular design for easy installation
- DIN rail mountable
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Protection of electrical circuits in homes
- Commercial: Offices, retail, and hospitality environments
- Industrial: Light industrial installations requiring earth leakage protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008.1 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports energy-efficient circuit management by preventing leakage currents
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iID 2P 40A 100mA A RCCB (SCHA9R22240) is available for immediate purchase. Ideal for residential, commercial, and light industrial electrical protection applications.
