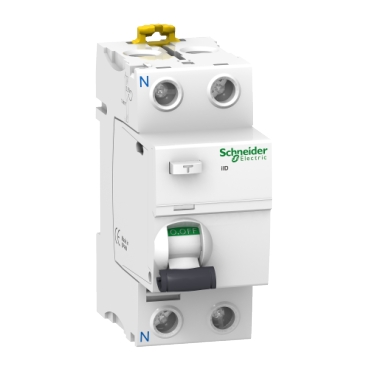

Acti9 iID 2P 40A 30mA A-SI RCCB | Super Immunised Technology | DIN Rail Mounting | by Clipsal
The Acti9 iID 2P 40A 30mA A-SI RCCB is designed for optimal electrical safety, featuring super immunised technology to prevent nuisance tripping. Ideal for residential and commercial applications, this 2-pole residual current circuit breaker ensures reliable protection for lighting and power circuits. With a quick DIN rail mounting system and a test button for regular safety checks, it’s a must-have for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 2P 40A 30mA A-SI RCCB | Super Immunised Technology | DIN Rail Mounting | by Clipsal
Brand: Clipsal
SKU: SCHA9R91240
Alternatively Known As: RCCB, Residual Current Circuit Breaker, Earth Leakage Circuit Breaker, 2 Pole RCCB, Clipsal 40A RCCB, Acti9 RCCB, SCHA9R91240
Technical Specifications
- Number of Poles: 2
- Rated Current: 40A
- Rated Residual Operating Current: 30mA
- Type: A-SI (Super Immunised, high immunity to nuisance tripping)
- Rated Voltage: 230/400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Test Button: Yes
- Conformity: IEC/EN 61008-1
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- 2 pole (2P) residual current circuit breaker (RCCB)
- Rated current: 40A
- Rated residual operating current: 30mA
- Type A-SI: Sensitive to AC and pulsating DC faults, with Super Immunised (SI) technology for high immunity to nuisance tripping
- Quick and easy DIN rail mounting
- Clear ON/OFF indication
- Test button for regular safety checks
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Residential electrical distribution boards
- Commercial and industrial electrical panels
- Protection of lighting and power circuits
- General safety for electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iID 2P 40A 30mA A-SI RCCB (SCHA9R91240) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical safety applications.
