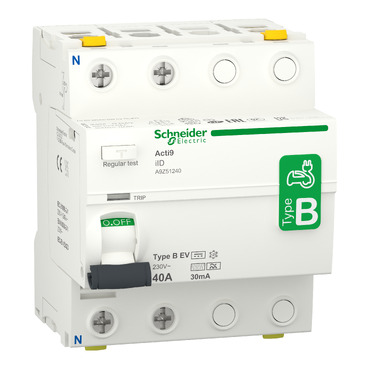

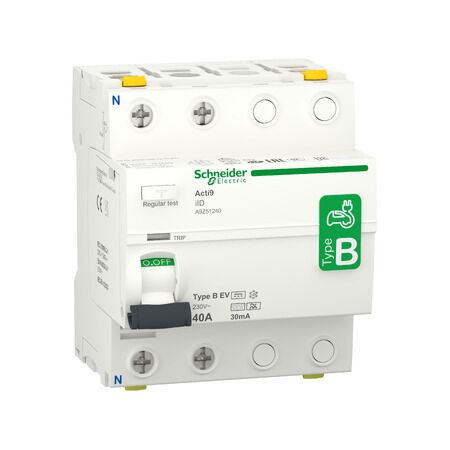

Acti9 iID 2P 40A 30mA B EV RCCB | Type B for EV Charging | DIN Rail Mount | by Clipsal
The Acti9 iID 2P 40A 30mA B EV RCCB is designed for electric vehicle charging applications, providing enhanced protection against AC, pulsating DC, and smooth DC faults. Ideal for residential and commercial electrical distribution boards, this compact and easy-to-install circuit breaker ensures safety and compliance with AS/NZS standards, making it a reliable choice for modern electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 2P 40A 30mA B EV RCCB | Type B for EV Charging | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9Z51240
Alternatively Known As: EV RCCB, Type B RCCB, Residual Current Circuit Breaker for EV, Clipsal SCHA9Z51240, Acti9 iID RCCB, 40A 30mA RCCB
Technical Specifications
- Number of poles: 2
- Rated current: 40A
- Rated residual operating current: 30mA
- Type: B EV (suitable for EV charging, detects AC, pulsating DC, and smooth DC faults)
- Rated voltage: 230/400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Breaking capacity: 10kA
- IP rating: IP20 (when installed in enclosure)
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- 2-pole residual current circuit breaker (RCCB)
- Rated current: 40A
- Rated residual operating current: 30mA
- Type B EV: Suitable for electric vehicle charging applications
- Enhanced protection against AC, pulsating DC, and smooth DC residual currents
- Quick and easy DIN rail mounting
- Compact design for space-saving installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Electric vehicle charging stations
- Residential and commercial electrical distribution boards
- Industrial installations requiring earth leakage protection
- Renewable energy systems
Standards & Compliance
- Complies with AS/NZS 61008.1 for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports safe integration of electric vehicle charging infrastructure
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iID 2P 40A 30mA B EV RCCB (SCHA9Z51240) is available for immediate purchase. Ideal for electric vehicle charging stations and electrical distribution boards requiring advanced earth leakage protection.
