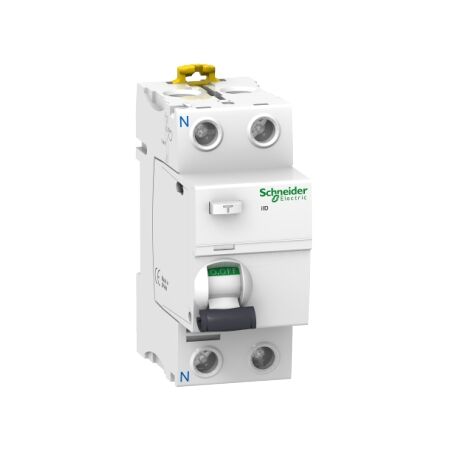

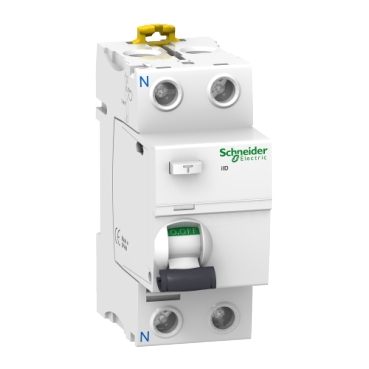

Acti9 iID 2P 80A 100mA A RCCB | Type A Sensitivity | Quick Disconnection | Compact Design | @Pack of 1 | by Clipsal
The Acti9 iID 2P 80A 100mA A RCCB is designed for reliable electrical protection, featuring Type A sensitivity for AC and pulsating DC fault currents. Ideal for residential, commercial, and industrial applications, it ensures quick disconnection in case of earth leakage, enhancing safety and compliance with modern energy-efficient systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 2P 80A 100mA A RCCB | Type A Sensitivity | Quick Disconnection | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R22280
Alternatively Known As: Clipsal RCCB, Acti9 RCCB, Residual Current Circuit Breaker, 80A 100mA RCCB, SCHA9R22280, Earth Leakage Circuit Breaker
Technical Specifications
- Number of poles: 2
- Rated current: 80A
- Rated residual operating current: 100mA
- Type: A (detects AC and pulsating DC earth leakage)
- Rated voltage: 230/400V AC 50/60Hz
- Breaking capacity: 6kA
- Mounting: DIN rail
- Operating temperature: -25°C to +60°C
- IP rating: IP20 (when installed in enclosure)
- Test button: Yes
- Dimensions (H x L x W): 85mm x 73mm x 36mm
- Weight: 0.25 kg
Key Features
- 2 pole (2P) residual current circuit breaker (RCCB)
- Rated current: 80A
- Rated residual operating current: 100mA
- Type A sensitivity for AC and pulsating DC fault currents
- Quick and reliable disconnection in case of earth leakage
- Compact Acti9 modular design for easy installation
- Clear ON/OFF indication
- Test button for regular functionality checks
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential electrical distribution boards
- Commercial switchboards
- Industrial electrical panels
- Protection of lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 61008.1 for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports compliance with modern energy-efficient electrical systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iID 2P 80A 100mA A RCCB (SCHA9R22280) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
