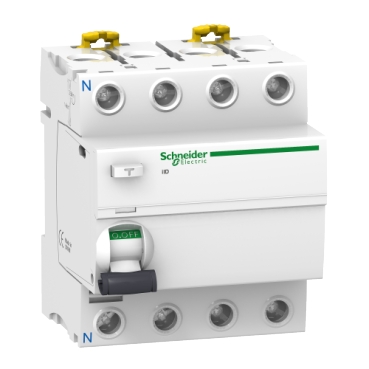

Acti9 iID 4P 40A 100mA A RCCB | Type A Protection | DIN Rail Mounting | IP20 Rated | @Pack of 1 | by Clipsal
The Acti9 iID 4P 40A 100mA A RCCB is designed for superior electrical safety, providing protection against earth leakage faults. Ideal for residential, commercial, and light industrial applications, this device features quick DIN rail mounting and clear ON/OFF indication. With a sensitivity of 100mA and compliance with international standards, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 4P 40A 100mA A RCCB | Type A Protection | DIN Rail Mounting | IP20 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R22440
Alternatively Known As: 4 Pole RCCB, 40A 100mA RCD, Residual Current Device, Earth Leakage Circuit Breaker, Acti9 iID RCCB, SCHA9R22440
Technical Specifications
- Number of Poles: 4
- Rated Current: 40A
- Rated Residual Operating Current: 100mA
- Type: A (detects AC and pulsating DC faults)
- Rated Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Terminal Capacity: 1-25mm²
- Operating Temperature: -25°C to +60°C
- Degree of Protection: IP20 (device), IP40 (in enclosure)
- Standards: IEC/EN 61008-1
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.45 kg
Key Features
- 4 pole residual current circuit breaker (RCCB)
- Rated current: 40A
- Sensitivity: 100mA (Type A)
- Provides protection against earth leakage faults
- Quick and easy DIN rail mounting
- Clear ON/OFF indication
- Double insulation for enhanced safety
- Complies with international and Australian standards
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Main switchboards, sub-distribution boards
- Commercial: Offices, retail, hospitality, and public buildings
- Industrial: Light industrial switchboards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual Current Operated Circuit-Breakers
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 iID 4P 40A 100mA A RCCB (SCHA9R22440) is available for immediate purchase. Ideal for use in residential, commercial, and light industrial electrical distribution boards.
