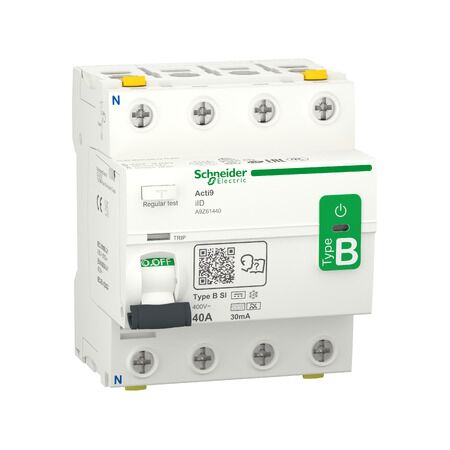

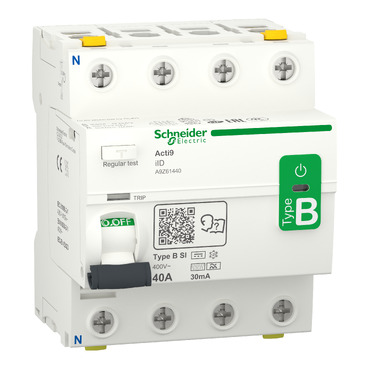

Acti9 iID 4P 40A 30mA B-SI RCCB | 4 Pole Protection | DIN Rail Mounting | by Clipsal
The Acti9 iID 4P 40A 30mA B-SI RCCB offers comprehensive circuit protection with its 4-pole design and 30mA sensitivity for effective earth leakage protection. Ideal for residential, commercial, and light industrial applications, this RCCB ensures safety and compliance with AS/NZS standards. Quick and easy DIN rail mounting makes installation a breeze, providing peace of mind in electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 4P 40A 30mA B-SI RCCB | 4 Pole Protection | DIN Rail Mounting | by Clipsal
Brand: Clipsal
SKU: SCHA9Z61440
Alternatively Known As: Clipsal RCCB, Residual Current Circuit Breaker, 4 Pole RCCB, Acti9 iID RCCB, SCHA9Z61440, Earth Leakage Circuit Breaker
Technical Specifications
- Number of Poles: 4
- Rated Current: 40A
- Rated Residual Operating Current: 30mA
- Type: B-SI (Super Immunised)
- Rated Voltage: 400V AC
- Mounting: DIN rail
- Standards: IEC/EN 61008-1
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.45 kg
Key Features
- 4 pole RCCB for comprehensive circuit protection
- Rated current: 40A
- Sensitivity: 30mA for effective earth leakage protection
- Type B-SI for enhanced immunity to nuisance tripping
- Quick and easy DIN rail mounting
- Clear ON/OFF indication for safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Protection of electrical circuits in homes
- Commercial: Offices, retail, and hospitality environments
- Industrial: Light industrial facilities requiring earth leakage protection
Standards & Compliance
- Complies with AS/NZS 61008.1 for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs).
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal Acti9 iID 4P 40A 30mA B-SI RCCB (SCHA9Z61440) is available for immediate purchase. Ideal for residential, commercial, and light industrial electrical protection applications.
