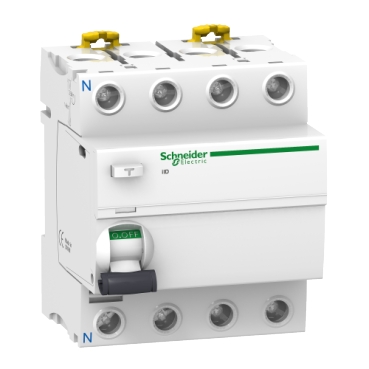

Acti9 iID 4P 63A 100mA A RCCB | Type A Residual Current Protection | DIN Rail Mounting | by Clipsal
Acti9 iID 4P 63A 100mA A RCCB provides reliable residual current protection, ideal for residential, commercial, and light industrial applications. With a 4-pole design and Type A sensitivity, it detects both AC and pulsating DC faults, ensuring enhanced electrical safety. Quick DIN rail mounting and a test button for regular safety checks make it a practical choice for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 iID 4P 63A 100mA A RCCB | Type A Residual Current Protection | DIN Rail Mounting | by Clipsal
Brand: Clipsal
SKU: SCHA9R22463
Alternatively Known As: 4 Pole RCCB, 63A RCCB, 100mA Residual Current Circuit Breaker, Acti9 iID RCCB, Clipsal RCCB, SCHA9R22463
Technical Specifications
- Number of Poles: 4P
- Rated Current: 63A
- Residual Current Sensitivity: 100mA
- Type: A (detects AC and pulsating DC faults)
- Rated Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Breaking Capacity: 10kA
- Test Button: Yes
- Standards: IEC/EN 61008-1
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.45 kg
Key Features
- 4 pole (4P) design for three-phase and neutral protection
- Rated current: 63A
- Residual current sensitivity: 100mA
- Type A: Detects AC and pulsating DC residual currents
- High immunity to nuisance tripping
- Quick and easy DIN rail mounting
- Clear ON/OFF indication
- Test button for regular safety checks
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Main switchboards, sub-distribution boards
- Commercial: Offices, retail, hospitality, and public buildings
- Industrial: Light industrial switchboards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock.
- Long service life reduces replacement frequency and waste.
- Compliant with RoHS for reduced hazardous substances.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and light industrial switchboards requiring reliable residual current protection.
