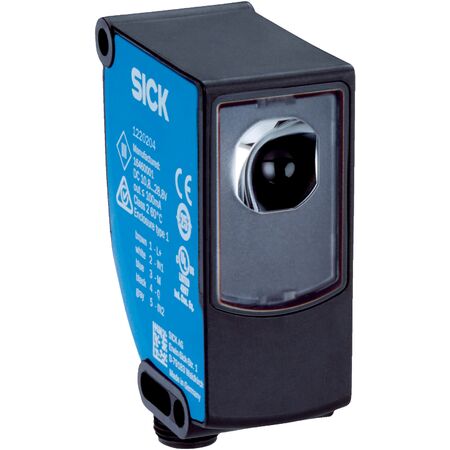

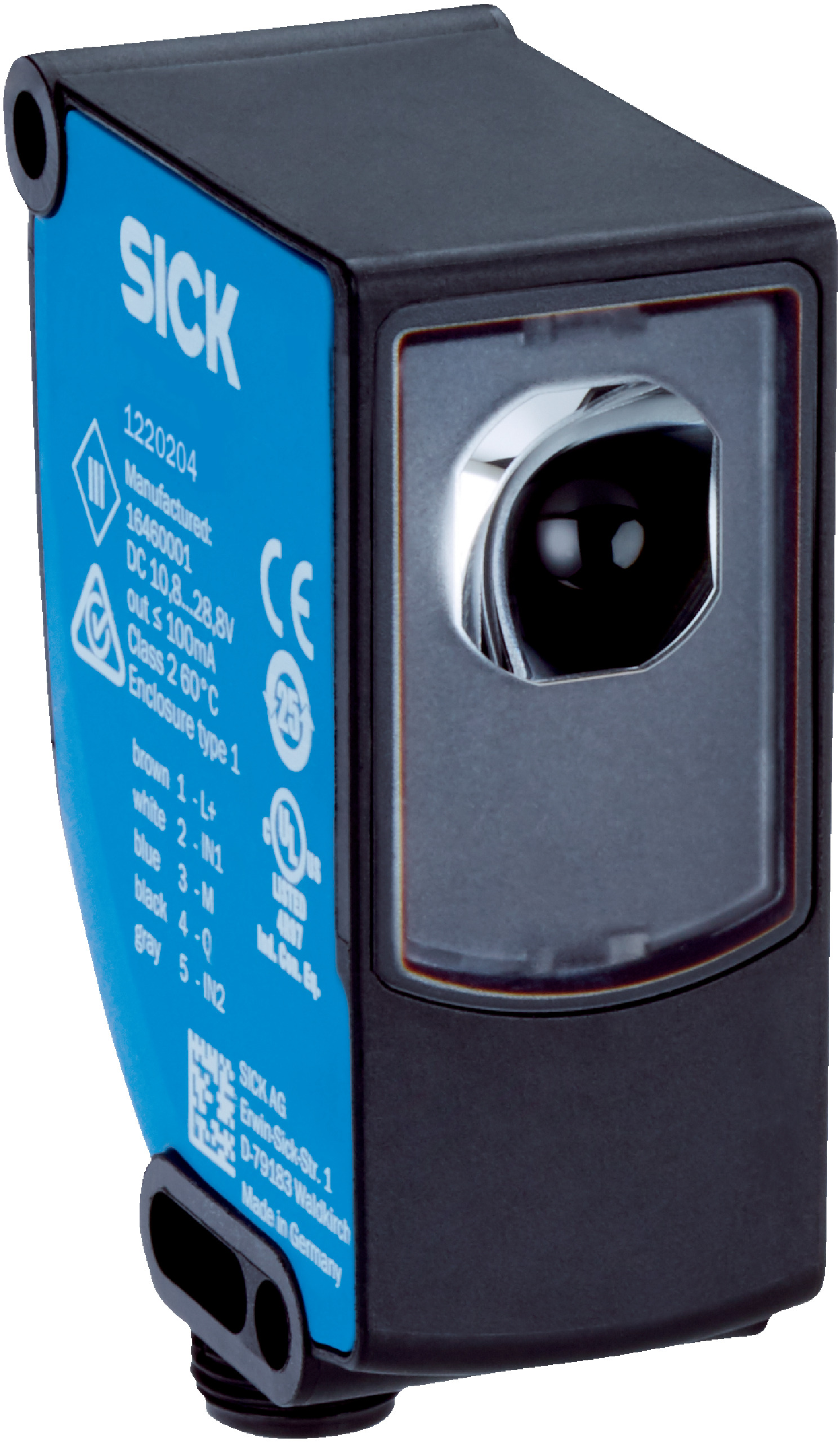

Active Light Sensor KTS-MBAC241152ZZZZ | IP67 Rated | 1.5 kHz Switching Frequency | Compact Design | by SICK
The KTS-MBAC241152ZZZZ Active Light Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a 1.5 kHz switching frequency. With a sensing distance of up to 25 mm and energy-efficient white LED light source, it’s perfect for object detection, quality control, and position sensing in conveyor systems. Built for reliability, this sensor ensures optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 1.5 kHz
- Response time: 320 µs
- Output current max: 100 mA
- Light source: White LED
- Wave length: 400 nm to 750 nm
- Field of view: 6 mm x 9 mm at 25 mm sensing distance
- Working range: 10 mm to 80 mm
- Protection class: III
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Active light detection with 2-point teach-in
- Sensing distance up to 25 mm with ±6 mm tolerance
- Compact housing design (26 mm x 62 mm x 47.5 mm)
- LED white light source with wavelength 400 nm to 750 nm
- Push-pull PNP/NPN switching output with light/dark switching
- Adjustable delay time and 1.5 kHz switching frequency
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for robust environmental protection
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in conveyor systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTS-MBAC241152ZZZZ Active Light Detection Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
