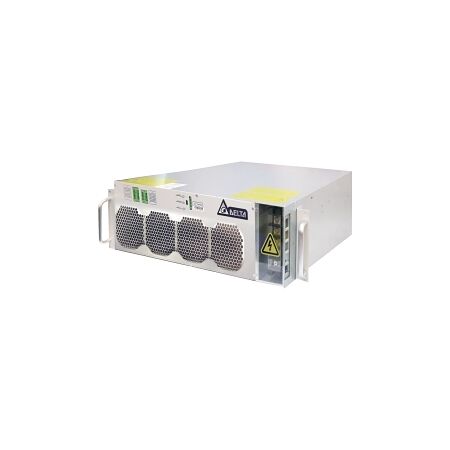

Active Power Filter Module 100A 3 Phase 4 Wire Delta Electronics
Improve power quality with a 100A Active Power Filter Module designed for 3 Phase 4 Wire electrical systems. Features front connect installation, IP30 protection, fast active harmonic filtering, and rapid response for demanding industrial and commercial applications. Complies with AS/NZS 3820 requirements for electrical equipment safety. See the complete specifications below for electrical ratings, dimensions, and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Operating Voltage: 308-458 V
- Input Voltage THD Range: 15 %
- Rated Frequency: 50-60 Hz
- Total Rated Capacity per Module: 100 A
- Degree of Protection: IP30
- Response Time: 20 s
- Instant Response Time: 0.1 s
- Operating Temperature: -10-50 °C
- Dimensions (H x L x W): 190mm x 606mm x 600mm
- Weight: 63 kg
Key Features
- Active harmonic filtering to improve power quality.
- Front connect design for easy installation and maintenance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Factories and manufacturing plants
- Commercial: Large office buildings and data centers
- General: Any facility requiring power quality improvement
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Reduces energy losses and improves overall system efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Delta Active Power Filter (APF) Power Module 100A is available now for immediate purchase. Ideal for industrial and commercial applications requiring enhanced power quality.
FAQ
Q: What applications is this Active Power Filter Module suitable for?
A: It is designed for factories, manufacturing plants, large office buildings, data centres, and other facilities requiring improved power quality.
Q: What protection rating does this module have?
A: The module has an IP30 protection rating and is recommended for professional installation by a qualified electrician.
Pair this module with a power quality analyser to help monitor electrical system performance and power quality.
Install a surge protection device to help protect connected equipment from electrical disturbances.
Complete commercial installations with an EV charger pedestal where a dedicated floor-mounted charging solution is required.
