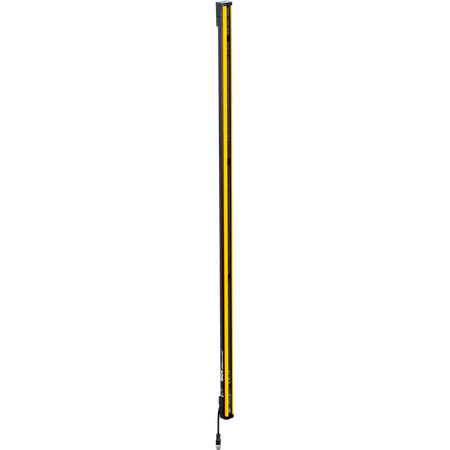

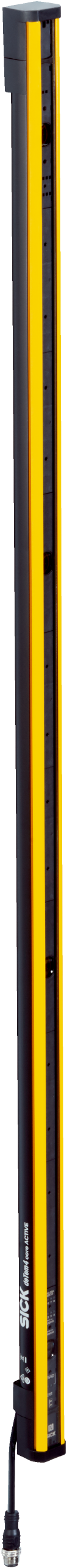

Active Safety Sensor M4C-ZA04300C10 | 7m Scanning Range | 4 Beams | Type 4 Safety | by SICK
The M4C-ZA04300C10 Active Safety Sensor is designed for industrial safety monitoring, featuring a scanning range of up to 7 meters and 4 beams with 300 mm separation. With a rapid response time of 20 ms and compliance to Type 4 safety standards, this sensor is perfect for machine safeguarding and automation systems, ensuring optimal safety performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 Core A/P Active Safety Sensor, SICK Safety Light Curtain, Industrial Safety Sensor M4C-ZA04300C10
Technical Specifications
- Product version: deTem4 Core A/P
- Functional principle: Active/passive
- Scanning range: 0.5 m to 7 m
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 5.3 x 10^-9
- Mission time: 20 years
- System connection: Plug, M12, 5-pin
- Display elements: LEDs with alignment aid
- NFC: Yes
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 2.4 W typical
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.89 kg
Key Features
- Active/passive functional principle
- Scanning range up to 7 m
- 4 beams with 300 mm beam separation
- Response time of 20 ms
- Type 4 safety (IEC 61496-1)
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance level PL e
- Plug M12, 5-pin system connection
- LED display elements with alignment aid via diagnostic LEDs
- Near Field Communication (NFC) enabled
- Protection class III (IEC 61140)
- Power consumption typical 2.4 W DC
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing made of aluminum extruded profile with polycarbonate scratch-resistant front screen
- Enclosure rating IP65 and IP67
- Operating temperature range -30 °C to +55 °C
- Shock resistance 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding
- Industrial automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 2.4 W reduces energy usage
- Durable materials and robust design extend product lifespan
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK M4C-ZA04300C10 deTem4 Core A/P Active Unit Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
