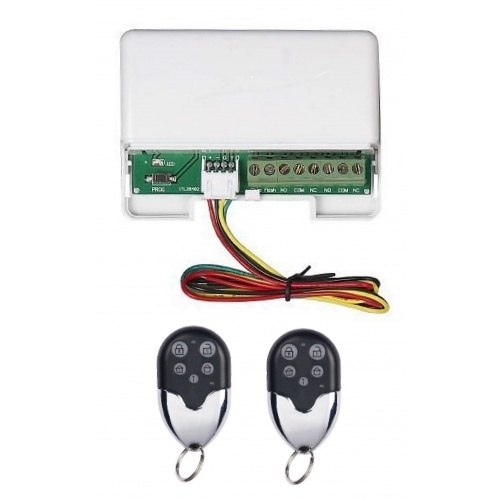

ACTIVOR NX BUS Two Way Receiver Kit | 5-Button Remote | Programmable Relay Outputs | by Dicker Data
The ACTIVOR NX BUS Two Way Receiver Kit features a 5-button remote with audio and visual feedback, making it ideal for security systems requiring two-way control. With two programmable relay outputs and compatibility with most alarm panels, this kit is perfect for both residential and commercial applications, ensuring seamless integration and enhanced security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTIVOR NX BUS Two Way Receiver Kit | 5-Button Remote | Programmable Relay Outputs | by Dicker Data
Brand: Dicker Data
SKU: RSI-07
Alternatively Known As: Two Way Remote Control Receiver Kit, ACTIVOR NX BUS Receiver, RSI-07 Remote Control Kit
Technical Specifications
- Operating Voltage: 9-15VDC
- Current: 10mA standby; 100mA max
- Outputs: Two programmable relay outputs; SPDT; rating 1A 24VDC/120VAC
- Standard Capacity: 25 fobs
- Dimensions: 90mm(L) x 60mm(W) x 28mm(H)
- Dimensions (H x L x W): 28mm x 90mm x 60mm
- Weight: 0.1 kg
Key Features
- 5-button remote provides both audio and visual system status feedback
- Directly wired to keypad data bus - plug and play
- Compatible with most alarm panels
- Outputs include arm/disarm/panic and two programmable relays
- Plug and play with 4 wire plug provided
- Easy to maintain - can easily delete or add a single remote
- Mounting plate provided for quick receiver installation
- Attractive and robust remote design
- FOB Battery: 2 x CR2032
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with alarm panels and compliance with safety standards.
Applications
- Security systems requiring two-way remote control
- Alarm panels compatibility for residential and commercial use
- Access control systems with programmable relay outputs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 10mA standby current
- Long-lasting CR2032 battery reduces frequent replacements
Warranty Information
1 year warranty from date of purchase covering manufacturing defects.
Available Now
The ACTIVOR NX BUS Two Way Receiver Kit 1YR by Dicker Data is available now for immediate purchase. Ideal for enhancing security system control in residential and commercial applications.
