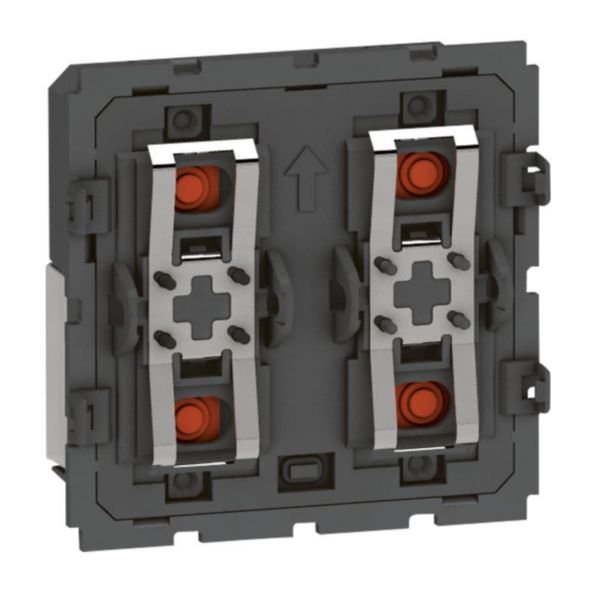

Actuator/Control Céliane | 2 Independent Relays | Zero Crossing Function | Flush-Mounted | @EA of 1 | by Legrand
The Actuator/Control Céliane features 2 independent relays with a neutral for zero crossing function, making it perfect for smart home lighting control. Designed for flush-mounted installation, this device is ideal for both residential and commercial lighting management, ensuring energy efficiency with low standby power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Actuator/Control Céliane | 2 Independent Relays | Zero Crossing Function | Flush-Mounted | @EA of 1 | by Legrand
Brand: Legrand
SKU: 067561
Alternatively Known As: Lighting actuator, Relay control module, Smart home relay switch, Céliane relay actuator
Technical Specifications
- 2 modules size
- Rated voltage: 27 V d.c.
- Rated current: 0.016 A
- Rated power: 1380 W
- Frequency: 50-60 Hz
- Standby consumption: 7 mA
- Degree of protection: IP20
- Operating temperature: 5-35 °C
- Storage temperature: -10 to 70 °C
- Terminals capacity: 0.34-2.5 mm²
- Mounting method: Flush-mounted
- Number of buttons: 4
- LED indication: Yes
- Bus connection: Yes
- Dimensions (H x L x W): 44mm x 34mm x 44mm
- Weight: 0.1 kg
Key Features
- 2 independent relays with neutral for zero crossing function
- Flush-mounted installation
- Bus connection compatible
- 4 buttons with LED indication
- Rated voltage 27 V d.c., rated current 0.016 A
- Standby consumption 7 mA
- Terminals capacity 0.34-2.5 mm²
- Operating temperature range 5-35 °C
- Degree of protection IP20
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Smart home lighting control
- Building automation systems
- Residential and commercial lighting management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low standby power consumption reduces energy waste
- Supports smart control to optimize lighting usage and energy efficiency
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Actuator/Control Céliane with 2 independent relays and neutral is available for immediate purchase, ideal for smart home and building lighting control applications.
