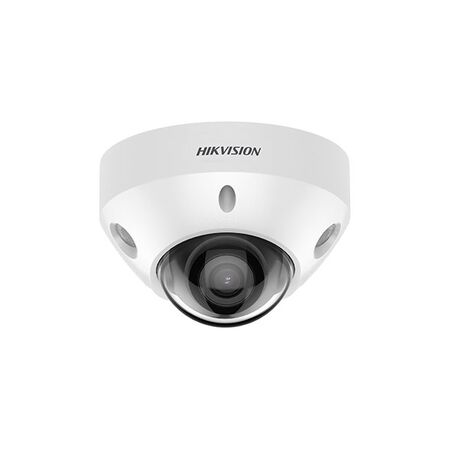

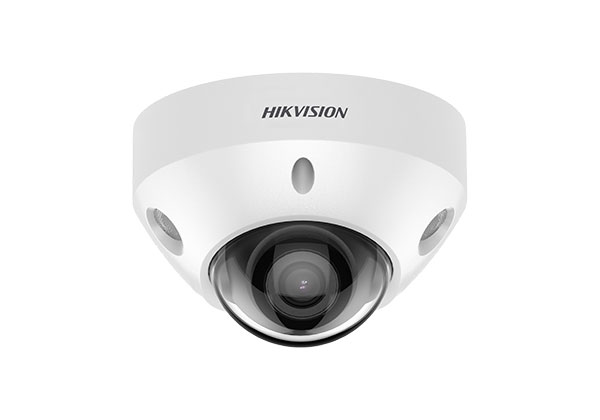

AcuSense Mini Dome Camera 8MP 2.8mm Hikvision
Hikvision AcuSense mini dome camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2586G2-IS, 8MP AcuSense Fixed Mini Dome, 4K IP Dome Camera
Technical Specifications
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3840 x 2160 pixels
- Lens: Fixed 2.8mm lens, F1.6 aperture
- Field of View: Horizontal 110°, vertical 56.7°, diagonal 134.1°
- Frame Rate: Up to 25 fps at 3840 x 2160 in 50 Hz mode
- Night Vision: 850nm infrared illumination up to 30m
- Wide Dynamic Range: 120dB WDR
- Detection: AcuSense human and vehicle target classification
- Video Compression: H.265, H.264 and MJPEG
- Audio: Built-in microphone with audio input and output
- Storage: microSD, microSDHC or microSDXC card up to 512GB
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power Supply: 12V DC or PoE 802.3af, Class 3
- Maximum Power Consumption: 8W via PoE
- Ingress Protection: IP67
- Impact Protection: IK08
- Operating Temperature: -30°C to 60°C
- Dimensions (H x L x W): 72.6mm x 113.6mm x 113.6mm
- Weight: 0.4 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 2.8mm wide-angle lens suited to broad-area coverage
- AcuSense classification of human and vehicle targets
- Up to 30m infrared night vision with smart supplementary lighting
- 120dB wide dynamic range for scenes with strong backlighting
- Built-in microphone and audio input/output interfaces
- PoE support for combined network and power cabling
- IP67 weather resistance for indoor and outdoor installations
- IK08 impact-resistant mini dome housing
- microSD card recording and network storage support
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. PoE, network cabling, mounting and configuration should comply with applicable Australian wiring, electrical safety and CCTV installation requirements. Audio recording must be configured in accordance with applicable privacy laws.
Applications
- Residential CCTV installations
- Retail and commercial premises
- Office and warehouse surveillance
- Building entrances and reception areas
- Car parks and covered outdoor areas
- Perimeter monitoring with human and vehicle classification
Standards & Compliance
- AS/NZS 62676.1.1:2020 for general video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance requirements
- AS/NZS 62676.4:2020 for video surveillance system application guidelines
- AS/NZS 62676.5:2020 for camera device data specifications and image quality performance
- RCM marking and AS/NZS CISPR 32:2015 EMC requirements as specified in the manufacturer datasheet
Environmental Benefits
- PoE reduces the need for separate power cabling and can simplify installation material usage
- Low-power network operation with a maximum rated consumption of approximately 8W via PoE
- IP67-rated housing supports longer service life in suitable outdoor environments, reducing replacement waste
- RoHS and REACH-related environmental compliance is specified in the manufacturer documentation
Warranty Information
Australian genuine-stock units are commonly supplied with a 3-year Hikvision manufacturer warranty; confirm warranty coverage and local-authorised distribution at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
