Adaptable Electrical Box | IP66 Protection | UV-Resistant Polypropylene | High Impact Rating by Cabac

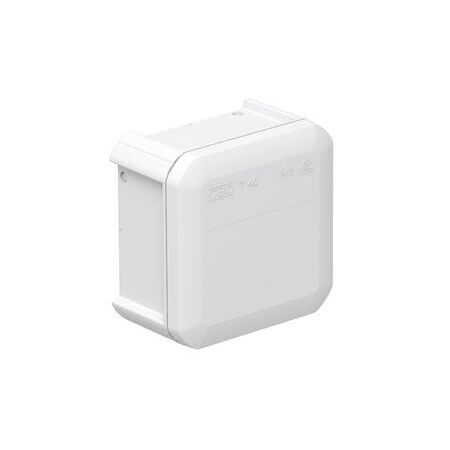

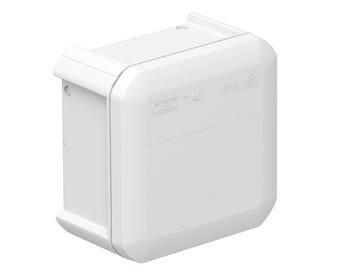

The Cabac ADAPTABLE BOX T40 CLOSED WALL 90x90x52 is a durable, UV-resistant polypropylene enclosure designed for electrical and communication installations. It offers IP66 ingress protection and high impact resistance, ideal for harsh indoor and outdoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ADAPTABLE BOX T40 CLOSED WALL 90x90x52
Brand: Cabac
SKU: OBOTOE090905G
Alternatively Known As: Adaptable Electrical Box, Closed Wall Enclosure, IP66 Electrical Enclosure, Polypropylene Junction Box
Technical Specifications
- Material: UV-resistant polypropylene
- Ingress Protection: IP66
- Impact Rating: IK06-IK08
- Screws: Quarter-turn type for easy access
- Fixing Points: Multiple for versatile installation
- Lanyard: Nylon, secures lid during installation
- Dimensions (H x L x W): 90mm x 52mm x 90mm
- Weight: 0.2 kg
Key Features
- UV Resistant: Made from high-grade polypropylene for durability under Australian conditions
- IP66 Protection: High ingress protection to keep the interior clean and dry
- High Impact Rating: Rated IK06-IK08 for reliable performance in tough conditions
- Quarter Turn Screws: Simplifies access and secures the lid effectively
- Multiple Fixing Points: Offers flexibility for a wide range of installations
- Nylon lanyard connects the lid to the base for convenience during installation
- Alignment markings for precise and secure installation
Professional Installation Requirements
- Professional installation recommended to ensure compliance with electrical safety standards and proper sealing for ingress protection.
Applications
- Electrical installations requiring robust protection
- Communication installations in harsh environments
- Indoor and outdoor use in areas exposed to UV and extreme weather conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UV-resistant material extends product lifespan reducing waste
- Durable construction minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac ADAPTABLE BOX T40 CLOSED WALL 90x90x52 is available for immediate purchase, ideal for electrical and communication installations in harsh indoor and outdoor environments.
