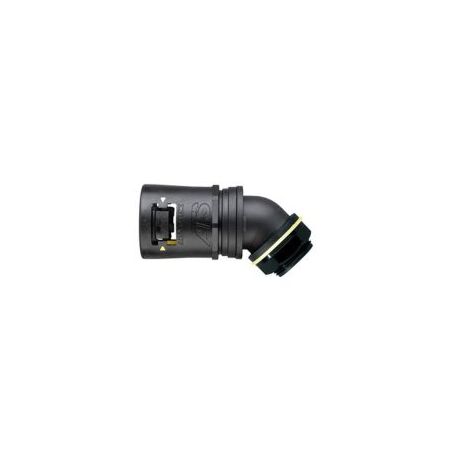

Adaptalok 45 Degree Elbow 16mm Conduit M16 Male Black Adaptaflex

BRAND: CABAC
SKU: AT16/M16/45/BLY
$20.60 List price: $27.50
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok 45 degree elbow features 16mm conduit size, fixed M16 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.

Alternatively Known As: 45 Degree Conduit Elbow, Adaptalok Type 45 Fitting, Nylon Conduit Elbow, Fixed Male Conduit Fitting

Technical Specifications
  • Fitting Type: 45° elbow with fixed external male thread
  • Nominal Conduit Size: 16 mm
  • Thread: M16 x 1.5 metric male thread
  • Thread Length: 11.5 mm
  • Material: Polyamide nylon 66 body with TPE sealing element
  • Colour: Black
  • Ingress Protection: IP66 as standard; IP67, IP68 and IP69K when fitted with ALS seal
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C dynamic
  • Conduit Compatibility: PA, PR, PADL, PF and related non-metallic conduit systems
  • Fire Performance: Self-extinguishing, halogen-free and low smoke
  • UV Resistance: Very high
  • Locknut: Supplied with metric-thread versions
  • Mechanical Classification: BS EN 61386-1 and BS EN 61386-23 approved
  • Dimensions (H x L x W): 39.7mm x 41.7mm x 23.7mm
  • Weight: 0.1 kg
Key Features
  • Fixed 45° elbow geometry for neat conduit routing
  • M16 x 1.5 male thread for installation through threaded entries or knockouts
  • Suitable for 16 mm PA, PR, PADL and PF conduit
  • Nylon 66 construction provides lightweight, impact-resistant cable protection
  • IP66 protection as standard with enhanced IP protection available using the ALS seal
  • High and low temperature performance for static and dynamic applications
  • Black finish for general electrical, automation and machinery installations
  • Metric locknut supplied
Applications
  • Electrical cable protection systems
  • Control panels and machine-tool wiring
  • Automation and industrial equipment
  • Electrical enclosures and junction boxes
  • Routing 16 mm flexible conduit through knockouts
  • Applications requiring angled conduit entry and environmental sealing
Standards & Compliance
  • AS/NZS 61386.23:2015 is the applicable Australian/New Zealand standard for flexible conduit systems; the manufacturer specifies conformity with the equivalent BS EN 61386-23 requirements.
Environmental Benefits
  • Halogen-free, low-smoke construction supports reduced hazardous emissions during fire conditions
  • RoHS and REACH compliant material selection helps restrict hazardous substances
  • Durable nylon construction and high ingress protection can extend service life and reduce replacement waste
  • Lightweight polymer construction reduces material use and transport weight compared with many metallic alternatives
Warranty Information

ABB Australia standard warranty cover is generally 12 months against defects in materials and workmanship, subject to the applicable ABB terms of sale and Australian Consumer Law.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
