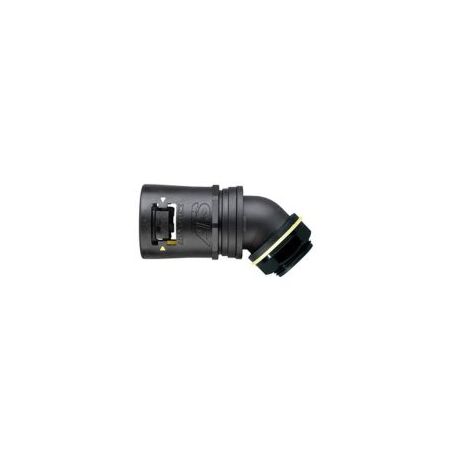

Adaptalok 45 Degree Elbow 16mm Conduit M20 Male Black Adaptaflex

BRAND: CABAC
SKU: AT16/M20/45/BLY
$16.30 List price: $21.80
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok 45 degree elbow features 16mm conduit size, fixed M20 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.

Alternatively Known As: Adaptaflex Adaptalok 45 Degree Elbow, 16 mm Flexible Conduit Elbow, M20 Male Conduit Fitting

Technical Specifications
  • Fitting Type: 45° elbow with fixed external male thread
  • Nominal Conduit Size: 16 mm
  • Thread Size: M20 x 1.5
  • Material: Polyamide nylon 66 with nickel-plated brass thread
  • Colour: Black
  • Ingress Protection: IP66 as standard; IP67, IP68 and IP69 with ALS sealing accessory
  • Temperature Range: -50°C to +120°C static; -45°C to +120°C moving applications
  • Compatible Conduit: PA, PI, CP, PR and PF conduit
  • Installation: For insertion into knockouts using a locknut; metric locknut supplied
  • Dimensions (H x L x W): 23.3mm x 42.7mm x 23.7mm
  • Weight: 0.1 kg
Key Features
  • Fixed M20 male thread for direct installation into threaded entries and knockouts
  • 45° angled design assists conduit routing where space is restricted
  • Suitable for 16 mm flexible conduit systems
  • Durable nylon 66 construction with corrosion-resistant nickel-plated brass thread
  • IP66 protection, extendable to IP67, IP68 and IP69 with the appropriate ALS seal
  • Suitable for static and moving applications across a broad operating temperature range
Applications
  • Electrical control panels and enclosures
  • Industrial machinery and automation equipment
  • Cable protection for motors, sensors and instrumentation
  • Commercial and industrial wiring installations
  • Conduit routing in areas requiring angled entry and environmental protection
Standards & Compliance
  • Applicable to flexible conduit systems covered by AS/NZS 61386.23:2015
  • Electrical installation selection and installation should be completed in accordance with AS/NZS 3000 where applicable
Environmental Benefits
  • Durable nylon 66 construction can support a long service life and reduce replacement waste
  • Protects enclosed cables from mechanical and environmental damage, helping extend cable service life
  • Non-metallic body reduces corrosion-related replacement in suitable installations
Warranty Information

ABB standard warranty terms generally provide 24 months from delivery unless otherwise specified. Australian Consumer Law rights apply to eligible purchases.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
