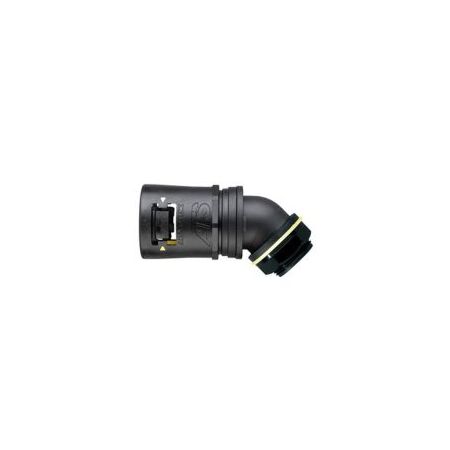

Adaptalok 45 Degree Elbow 21mm Conduit M20 Male Black Adaptaflex

BRAND: CABAC
SKU: AT21/M20/45/BLY
$13.90 List price: $18.50
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok 45 degree elbow features 21mm conduit size, fixed M20 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.

Alternatively Known As: Adaptalok ATS Type 45 Elbow, Adaptaflex 45 Degree Conduit Elbow, AT21/M20/45/BLY, 21 mm Flexible Conduit Fitting

Technical Specifications
  • Product Type: Adaptalok ATS Type 45 fixed external male-thread elbow
  • Nominal Conduit Size: 21 mm
  • Thread Type: Metric external male thread
  • Thread Size: M20 x 1.5
  • Thread Length: Approximately 12 mm
  • Connection Angle: 45°
  • Material: Polyamide (Nylon) 66 with thermoplastic elastomer sealing element
  • Colour: Black body
  • Ingress Protection: IP66 to IP69, depending on conduit and sealing configuration
  • Compatible Conduit: PA, PR, PADL and PF conduit
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C moving applications
  • Installation Method: Push-fit conduit connection with locknut mounting
  • Conduit System Compatibility: Designed for flexible conduit systems to EN 61386-23
  • RoHS/REACH: Verify against the supplied product revision and market documentation
  • Dimensions (H x L x W): 69.3mm x 67.3mm x 29.3mm
  • Weight: 0.1 kg
Key Features
  • Fixed 45° elbow for routing flexible conduit into enclosures and equipment
  • M20 external male thread for threaded entries or knockout mounting
  • Fast-fit connection for compatible Adaptaflex conduit systems
  • PA66 body with TPE sealing element
  • IP66–IP69 protection when correctly assembled with compatible conduit and sealing components
  • Suitable for PA, PR, PADL and PF conduit types
  • Suitable for static and moving cable-protection applications
  • Black finish for standard industrial cable-management installations
Applications
  • Industrial control panels and electrical enclosures
  • Machinery and automation equipment
  • HVAC and building-services equipment
  • Cable protection through enclosure knockouts
  • Electrical installations requiring flexible conduit with a 45° change of direction
  • Commercial and industrial cable-management systems
Standards & Compliance
  • AS/NZS 61386.23: Particular requirements for flexible conduit systems; confirm the complete conduit-and-fitting assembly certification for the installation
Environmental Benefits
  • Durable PA66/TPE construction can support extended service life and reduce replacement waste
  • Non-metallic construction avoids corrosion-related degradation in suitable environments
  • RoHS and REACH compliance information is available for the Adaptaflex product range; verify the specific product revision before making a project compliance claim
Warranty Information

ABB Australia standard sale conditions provide a 12-month warranty against defects in materials and workmanship, subject to correct handling, installation, use and notification requirements; Australian Consumer Law rights also apply where relevant.

Available Now

Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
