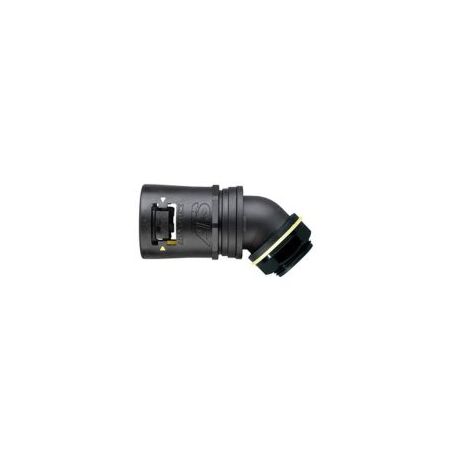

Adaptalok 45 Degree Elbow 34mm Conduit M32 Male Black Adaptaflex
Adaptalok 45 degree elbow features 34mm conduit size, fixed M32 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok 45 Degree Elbow, AT34/M32/45/BLY, 34 mm Nylon Conduit Elbow, M32 Male Conduit Fitting
Technical Specifications
- Product Code: AT34/M32/45/BLY
- Fitting Type: 45° elbow with fixed external male thread
- Nominal Conduit Size: 34 mm
- Thread: M32 x 1.5 male thread
- Material: Polyamide (nylon) 66 with TPE sealing material
- Colour: Black body with yellow elastomer
- Ingress Protection: IP66 to IP69 when used with compatible conduit and sealing components
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Compatible Conduit: PA, PR, PADL and PF conduit systems
- Installation Interface: For insertion into knockouts using a locknut; metric locknut supplied
- Thread Standard: EN 60423 and BS 3643 metric thread dimensions
- Manufacturer Approval: IEC 61386, CE, NF, cRUus and RoHS references in product documentation
- Dimensions (H x L x W): 66mm x 70.1mm x 44.2mm
- Weight: 0.1 kg
Key Features
- 45° bend assists cable routing in confined installations
- Fixed M32 male thread for direct entry into threaded enclosures or knockouts
- Push-on Adaptalok connection for compatible flexible conduit
- PA66 nylon body provides a lightweight, corrosion-free alternative to metallic fittings
- TPE sealing element supports liquid-tight cable protection
- Suitable for PA, PR, PADL and PF flexible conduit
- Designed for demanding industrial, automation, machinery and control-panel applications
- Metric locknut supplied for knockout installation
- RoHS-compliant material options are identified in Adaptaflex documentation
Professional Installation Requirements
- Where used as part of an electrical installation, installation should be completed by a suitably licensed electrician in accordance with the applicable wiring rules, enclosure requirements and manufacturer instructions. Ensure the correct compatible conduit, locknut and sealing components are used to achieve the stated IP rating.
Applications
- Industrial control panels and switchboards
- Automation and machinery cable protection
- Electrical enclosures and junction boxes
- Commercial and industrial building services
- Rail, marine, food-processing and infrastructure equipment
- Cable routing where a 45° change of direction is required
Standards & Compliance
- AS/NZS 2053.1:2001 — Conduits and fittings for electrical installations, general requirements; applicable to conduit and fitting systems of this type
- IEC 61386 — identified by the manufacturer for the Adaptalok non-metallic conduit system
Environmental Benefits
- Polyamide construction is corrosion-free and can provide a long service life in harsh environments, reducing replacement waste
- Lightweight nylon construction can reduce handling and transport burden compared with equivalent metallic fittings
- RoHS compliance helps restrict specified hazardous substances in the product
- Durable conduit protection helps reduce cable damage and premature component replacement
- Nylon and TPE components should be separated and disposed of through applicable plastics recycling or waste channels where local facilities accept them
Warranty Information
ABB Australia standard sale terms provide a warranty against defects in materials and workmanship for 12 calendar months after delivery, subject to the stated conditions, exclusions and Australian Consumer Law rights. ([new.abb.com](https://new.abb.com/docs/librariesprovider70/terms-and-conditions/standard-conditions-for-sale-february-2023.pdf?sfvrsn=c5c4920a_2&utm_source=openai))
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
