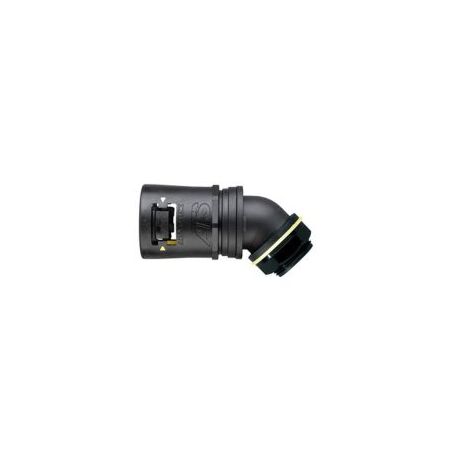

Adaptalok 45 Degree Elbow 42mm Conduit M40 Male Black Adaptaflex
Adaptalok 45 degree elbow features 42mm conduit size, fixed M40 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok S45 elbow, 45-degree conduit elbow, swivel external male conduit fitting, AL42/M40/S45/BL
Technical Specifications
- Conduit Size: 42mm nominal
- Fitting Type: 45° elbow with swivel external male thread
- Thread: M40 x 1.5 metric male
- Material: Polyamide (Nylon) 66 body with TPE sealing component
- Thread Material: Nickel-plated brass
- Colour: Black
- Ingress Protection: IP66; IP67, IP68 and IP69 with appropriate ALS seal
- Thread Length: 18mm
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Compatible Conduit: PA, PR, PF and CP conduit systems
- Product Code: AL42/M40/S45/BL
- Product ID: 7TCA296000R1096
- Dimensions (H x L x W): 95mm x 100mm x 70mm
- Weight: 0.181 kg
Key Features
- 45° elbow configuration for directional cable routing
- Swivel external M40 male thread for installation into threaded entries or knockouts
- Suitable for 42mm nominal flexible conduit
- High ingress protection from IP66 to IP69 when correctly assembled
- Non-metallic polyamide body resists corrosion and rust
- Compatible with Adaptaflex PA, PR, PF and CP conduit systems
- Designed for industrial, machinery, control-panel and cable-protection applications
- Locknut required for knockout installation; metric locknut supplied according to manufacturer literature
Professional Installation Requirements
- Installation should be carried out by a suitably qualified electrical installer in accordance with the applicable wiring rules, enclosure requirements and manufacturer instructions. Ensure the correct conduit, sealing components and locknut are used to achieve the stated IP rating.
Applications
- Industrial machinery and automation equipment
- Electrical control panels and enclosures
- Power and data cable protection
- Commercial and infrastructure cable-management systems
- Outdoor or washdown environments requiring high ingress protection
- Installations using Adaptaflex PA, PR, PF or CP flexible conduit
Standards & Compliance
- AS/NZS 3000:2018 — relevant electrical installation and wiring requirements
- AS/NZS 61386 series — relevant conduit-system standard; manufacturer literature identifies IEC/EN 61386 approvals, but product-specific Australian/NZ certification is not stated
Environmental Benefits
- Polyamide construction does not corrode or rust, supporting extended service life and reduced replacement waste
- Durable fitting design supports long-term cable protection in demanding environments
- RoHS compliance is stated in Adaptaflex product literature, restricting specified hazardous substances
- Lightweight non-metallic construction can reduce transport and handling impacts compared with heavier metallic fittings
Warranty Information
Adaptaflex product literature states a lifetime warranty for Adaptaflex cable protection systems, subject to ABB warranty terms and conditions.
Available Now
Available through ABB/Adaptaflex and authorised Australian electrical distributors.
