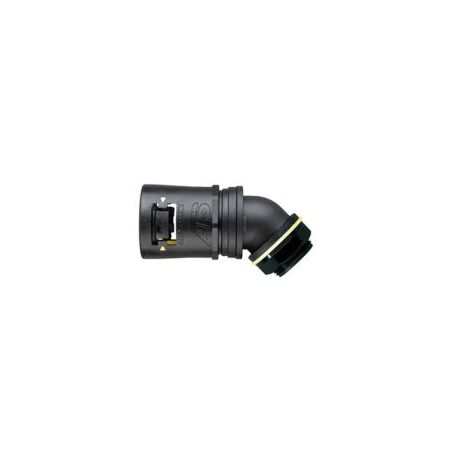

Adaptalok 45 Degree Elbow 54mm Conduit M50 Male Black Adaptaflex

BRAND: CABAC
SKU: AT54/M50/45/BLY
$50.00 List price: $66.70
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok 45 degree elbow features 54mm conduit size, fixed M50 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.

Alternatively Known As: AT54/M50/45/BLY, Adaptalok ATS 45 Degree Elbow, 54 mm Flexible Conduit Elbow, M50 Male Conduit Fitting

Technical Specifications
  • Product Type: Adaptalok ATS 45° elbow fitting
  • Part Number: AT54/M50/45/BLY
  • Nominal Conduit Size: 54 mm
  • Thread Size: M50 x 1.5 male
  • Thread Type: Fixed external male thread
  • Material: Polyamide nylon 66 body with TPE elastomer seals
  • Colour: Black body with yellow elastomer
  • Ingress Protection: IP66 to IP69
  • Compatible Conduit: PA, PR, PADL and PF types
  • Static Temperature Range: -50°C to +120°C
  • Moving Temperature Range: -45°C to +120°C
  • Installation: For threaded entries or knockouts using a locknut; metric locknut supplied
  • Performance Basis: BS EN 61386-1 and BS EN 61386-23 approved
  • Dimensions (H x L x W): 66.2mm x 100.3mm x 70mm
  • Weight: 0.181 kg
Key Features
  • 45° elbow configuration for routing flexible conduit around equipment and enclosures
  • Fixed M50 external male thread for direct panel or enclosure entry
  • Suitable for nominal 54 mm conduit systems
  • Nylon 66 body with integrated TPE sealing components
  • IP66–IP69 protection when installed with compatible conduit
  • Compatible with PA, PR, PADL and PF flexible non-metallic conduits
  • Yellow elastomer provides visible confirmation of the fitting and sealing interface
  • Designed for fast, reliable conduit-system assembly
Applications
  • Electrical cable protection systems
  • Industrial machinery and automation equipment
  • Control panels, cabinets and electrical enclosures
  • Commercial and infrastructure electrical installations
  • Rail, transport, OEM and equipment-manufacturing applications
  • Flexible conduit routing where a 45° change of direction is required
Standards & Compliance
  • AS 61386.1:2015 – relevant Australian general requirements for conduit systems for cable management
  • AS/NZS 61386.23:2015 – relevant particular requirements for flexible conduit systems; confirm current project requirements
  • Manufacturer documentation references BS EN 61386-1 and BS EN 61386-23 approval
Environmental Benefits
  • Durable nylon 66 and TPE construction can extend service life and reduce replacement waste
  • Non-metallic construction avoids corrosion-related replacement in suitable applications
  • Lightweight fitting reduces transport and handling impacts compared with equivalent metal fittings
  • Compatible with reusable flexible conduit systems for maintainable cable protection installations
Warranty Information

Specific Adaptaflex warranty duration was not published in the available manufacturer information. Warranty claims should be handled under the applicable ABB/Adaptaflex distributor terms and Australian Consumer Law.

Available Now

Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
