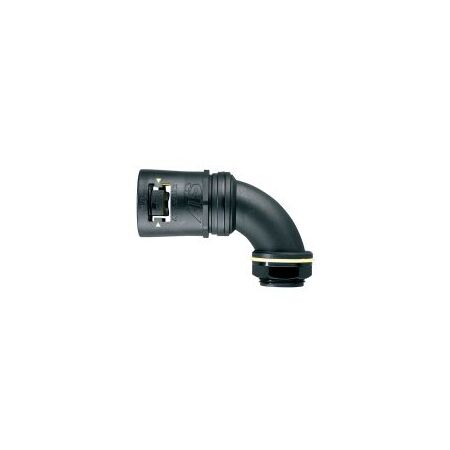

Adaptalok 90 Degree Elbow 13mm Conduit M16 Male Black Adaptaflex

BRAND: CABAC
SKU: AT13/M16/C90/BLY
$22.90 List price: $30.60
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok 90 degree elbow features 13mm conduit size, fixed M16 male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.

Alternatively Known As: Adaptaflex Adaptalok C90 Elbow, 13mm Conduit Elbow, Nylon Conduit Elbow Fitting

Technical Specifications
  • Fitting Type: 90-degree elbow with fixed external male thread
  • Nominal Conduit Size: 13mm
  • Thread: M16 x 1.5 metric male thread
  • Material: Polyamide nylon 66 body with TPE integrated seal
  • Colour: Black body with yellow elastomer
  • Ingress Protection: IP66 to IP69K as standard
  • Compatible Conduit: Adaptaflex PA, PR, PADL and PF conduit
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C dynamic
  • Mechanical Classification: BS EN 61386-1 and BS EN 61386-23 tested
  • Installation: Locknut supplied with metric-thread versions
  • Dimensions (H x L x W): 31.5mm x 65.2mm x 22mm
  • Weight: 0.1 kg
Key Features
  • 90-degree cable-conduit entry for compact routing
  • Fixed M16 male thread for threaded entries and knockouts
  • Integrated seal system helps prevent assembly errors
  • Suitable for 13mm Adaptaflex PA, PR, PADL and PF conduit
  • High-impact, UV-resistant nylon 66 construction
  • IP66, IP67, IP68 and IP69K protection when correctly assembled
  • Self-extinguishing, low-smoke and halogen-free material
  • Suitable for static and dynamic cable-protection applications
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrical tradesperson in accordance with the manufacturer's instructions and applicable electrical installation requirements, including AS/NZS 3000 where used in an electrical installation.
Applications
  • Electrical cable protection in control panels and enclosures
  • Industrial machinery and automation equipment
  • HVAC, refrigeration and building-services equipment
  • Telecommunications and data cabling installations
  • Outdoor and harsh-environment cable-routing applications
Standards & Compliance
  • AS/NZS 61386.23:2015 is the applicable Australian and New Zealand standard for flexible conduit systems; confirm project-specific certification requirements before installation
  • Manufacturer technical data references BS EN 61386-1 and BS EN 61386-23 performance testing
Environmental Benefits
  • Halogen-free construction supports reduced corrosive and toxic emissions in the event of fire
  • UV-resistant nylon 66 construction supports extended service life and reduced replacement waste
  • Durable, reusable conduit protection can help reduce damage to installed cables and associated maintenance waste
Warranty Information

12-month warranty against defects in design, materials and workmanship, subject to correct handling, installation, use and the manufacturer's Australian terms of sale. Australian Consumer Law rights apply where relevant.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
