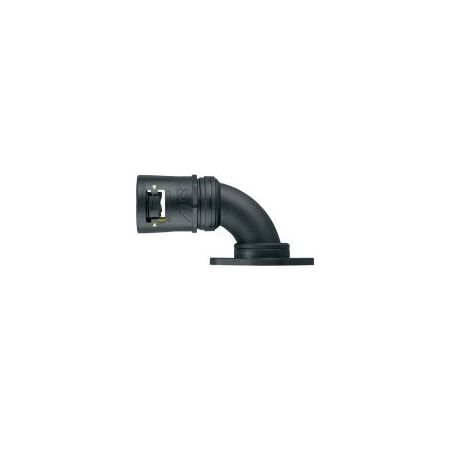

Adaptalok 90 Degree Flange Elbow 13mm Conduit Black Adaptaflex
Adaptalok 90 degree flange elbow features 13mm conduit size, panel mount swivel flange, face seal and nylon 66 TPE body. Ideal for panel entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex AL13/FL/C90/BL, 13mm Panel Mount Swivel Flange Elbow, 90 Degree Conduit Elbow
Technical Specifications
- Product Type: 90° elbow body with panel-mount swivel flange
- Nominal Conduit Size: 13mm
- Material: Polyamide nylon 66 with integral TPE face seal
- Colour: Black
- Panel Mounting: Two-hole fixing
- Ingress Protection: IP66; IP67, IP68 and IP69 with ALS seal
- Compatible Conduit: Adaptaflex Type PA, PI, CP, PR and PF conduit
- Static Temperature Range: -50°C to +120°C
- Moving Temperature Range: -45°C to +120°C
- Approvals and Markings: CE, NF, Kitemark and RoHS compliant
- Dimensions (H x L x W): 45mm x 45mm x 32mm
- Weight: 0.1 kg
Key Features
- 90° elbow configuration for compact panel entries
- Swivel flange permits alignment during installation
- Integral face seal supports a weather-resistant panel connection
- Two-hole panel mounting design
- Suitable for 13mm flexible non-metallic conduit systems
- Nylon 66 construction provides low weight and corrosion resistance
- IP66 protection with standard fitting; higher IP ratings available with ALS seal
Applications
- Electrical control panels and enclosures
- Industrial machinery and automation equipment
- Data, communications and instrumentation cabinets
- Cable entries through sheet-metal panels
- Internal and external flexible conduit cable protection
Standards & Compliance
- AS/NZS 61386.1:2015 is the applicable general requirements standard for conduit systems and conduit fittings; product-specific Australian certification should be confirmed for the installation.
Environmental Benefits
- RoHS-compliant construction supports restriction of hazardous substances
- Lightweight nylon construction reduces material and transport weight compared with metal fittings
- Durable, corrosion-resistant construction can extend service life and reduce replacement waste
- Compatible with reusable flexible conduit cable-protection systems
Warranty Information
12-month warranty against defects in materials and workmanship under ABB Australia standard sale conditions, subject to correct handling, installation and use.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
