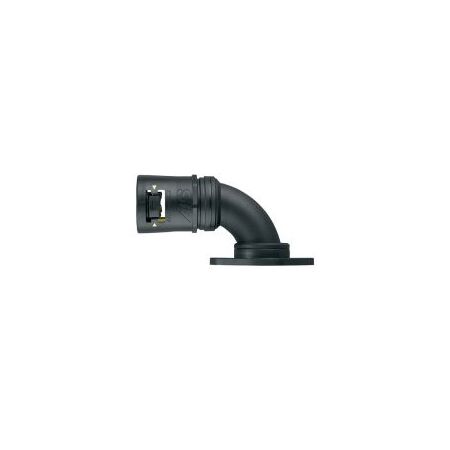

Adaptalok 90 Degree Flange Elbow 16mm Conduit Black Adaptaflex
Adaptalok 90 degree flange elbow features 16mm conduit size, panel mount swivel flange, face seal and nylon 66 TPE body. Ideal for panel entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 90° Panel Mount Swivel Flange, Adaptalok ATS FL/C90 Elbow, Flexible Conduit Flange Elbow
Technical Specifications
- Product Type: 90° elbow body with panel mounting swivel flange
- Nominal Conduit Size: 16mm
- Material: Polyamide nylon 66 body with TPE seal
- Colour: Black body with blue elastomer
- Connection Type: Snap connection
- Panel Mounting: Two-hole fixing with integral face seal
- Degree of Protection: IP40, IP65, IP68 and IP69K, depending on conduit and sealing configuration
- IP68 Rating: Up to 4 bar for 30 minutes
- Operating Temperature, Static: -50°C to +120°C
- Operating Temperature, Dynamic: -45°C to +120°C
- Compatible Conduit: Adaptaflex PA, PI, PR, PADL and PF series
- Mechanical Performance: High impact resistance and tested tensile performance
- Fire Performance: Self-extinguishing, low smoke and halogen-free
- Manufacturer Part Number: AT16/FL/C90/BLB
- ABB Product ID: 7TCA296170R0096
- Dimensions (H x L x W): 44.9mm x 43.5mm x 23.2mm
- Weight: 0.1 kg
Key Features
- 90° elbow configuration for compact panel entries
- Swivel flange enables convenient panel mounting alignment
- Integral face seal supports environmental protection
- Lightweight nylon 66/TPE construction
- Suitable for 16mm flexible corrugated conduit
- IP68 protection available with the specified conduit and sealing arrangement
- High impact resistance for industrial cable protection applications
- Low-smoke and halogen-free material construction
Applications
- Electrical control panels and enclosures
- Industrial machinery and automation equipment
- Cable protection at panel entries
- Transportation and rolling-stock equipment
- Manufacturing and process-control installations
Standards & Compliance
- Relevant to AS/NZS 61386.23:2015 for flexible conduit systems
- Installation should comply with AS/NZS 3000 where used as part of an electrical installation
Environmental Benefits
- Halogen-free, low-smoke construction can reduce hazardous emissions during fire conditions
- Non-metallic construction does not corrode or rust in normal service
- Lightweight construction can reduce material use and handling energy compared with heavier metal fittings
- Durable nylon 66/TPE materials support extended service life and reduced replacement waste
Warranty Information
Adaptaflex products are promoted with a lifetime warranty against manufacturing defects, subject to the applicable ABB/Adaptaflex warranty terms and conditions.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
