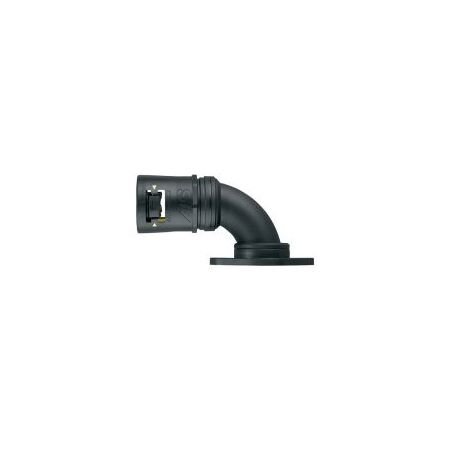

Adaptalok 90 Degree Flange Elbow 21mm Conduit Black Adaptaflex
Adaptalok 90 degree flange elbow features 21mm conduit size, panel mount swivel flange, face seal and nylon 66 TPE body. Ideal for panel entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok 90° Elbow, Panel Mounting Swivel Flange, 21mm Conduit Elbow, AT21/FL/C90/BLY
Technical Specifications
- Product Type: 90° elbow panel mounting swivel flange
- Nominal Conduit Size: 21mm
- Material: Polyamide Nylon 66 body with TPE seal
- Body Colour: Black
- Elastomer Options: Yellow or blue
- Mounting: Two-hole panel fixing
- Seal: Integral face seal
- Compatible Conduit: Adaptaflex PA, PI, PR, PADL and PF conduit series
- Ingress Protection: IP40, IP65, IP68 and IP69 with appropriate conduit configuration
- IP68 Rating: 4 bar for 30 minutes
- Temperature Range: -50°C to +120°C static; -45°C to +120°C dynamic
- Fire Performance: Self-extinguishing, low smoke and halogen-free
- Manufacturer Part Number: AT21/FL/C90/BLY or AT21/FL/C90/BLB
- Dimensions (H x L x W): 46.8mm x 44.9mm x 36mm
- Weight: 0.1 kg
Key Features
- 90-degree elbow configuration for compact panel entries
- Swivel flange supports two-hole panel mounting
- Integral face seal helps maintain enclosure protection
- Polyamide nylon 66 body with resilient TPE sealing element
- Suitable for demanding fixed and moving cable protection applications
- High impact resistance and UV protection
- Available with yellow or blue elastomer identification options
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical tradesperson in accordance with applicable wiring regulations and the conduit manufacturer's installation instructions.
Applications
- Panel entries in electrical control cabinets
- Industrial machinery and automation equipment
- Data centre and communications equipment
- Power and data cable protection
- Electrical enclosures requiring flexible conduit routing
Standards & Compliance
- Applicable conduit-system reference: AS/NZS 61386.23:2015 for flexible conduit systems and fittings
Environmental Benefits
- Halogen-free construction helps reduce hazardous smoke and corrosive gases in the event of fire
- Durable nylon 66 and TPE construction supports extended service life and reduces replacement waste
- Lightweight non-metallic construction can reduce material use and handling energy compared with heavier metallic fittings
Warranty Information
Warranty details vary by distributor; the product is covered by applicable Australian Consumer Law guarantees against defects and unacceptable quality.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
