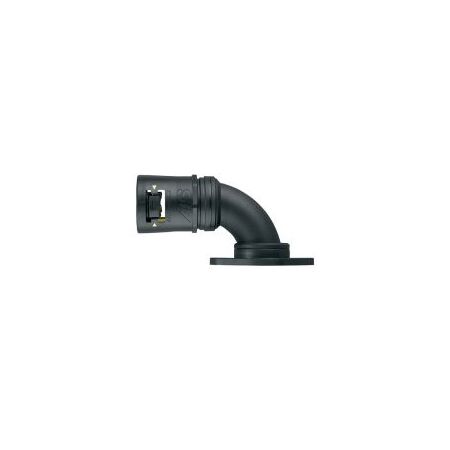

Adaptalok 90 Degree Flange Elbow 28mm Conduit Black Adaptaflex
Adaptalok 90 degree flange elbow features 28mm conduit size, panel mount swivel flange, face seal and nylon 66 TPE body. Ideal for panel entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex Adaptalok FL/C90 Elbow, 28mm Conduit Flange Elbow, 90 Degree Conduit Panel Entry Fitting
Technical Specifications
- Part Number: AL28/FL/C90/BL
- Fitting Type: 90-degree elbow body with panel mount swivel flange
- Nominal Conduit Size: 28mm
- Material: Polyamide nylon 66
- Seal: Integral face seal
- Colour: Black
- Protection Rating: IP66, IP67, IP68 and IP69K with appropriate sealing arrangement
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Compatible Conduit Types: PA, PI, CP, PR and PF
- Mounting: Two-hole panel fixing
- Dimensions (H x L x W): 56.9mm x 43.3mm x 45mm
- Weight: 0.1 kg
Key Features
- 90-degree conduit entry for compact panel installations
- Swivel flange allows flexible panel positioning during installation
- Integral face seal helps maintain enclosure integrity
- Nylon 66 construction provides a lightweight, corrosion-resistant fitting
- Suitable for 28mm nominal Adaptaflex flexible conduit
- Designed for panel entries and cable protection applications
- Compatible with a range of Adaptaflex non-metallic conduit systems
Applications
- Electrical control panels and enclosures
- Machinery and industrial equipment
- Automation and instrumentation systems
- Panel-mounted cable entries
- Protection of power, control and data cables in flexible conduit systems
Standards & Compliance
- Suitable for incorporation into conduit systems designed and installed in accordance with AS/NZS 61386 series requirements
- Electrical installations incorporating the fitting should be designed and installed in accordance with AS/NZS 3000
Environmental Benefits
- Lightweight nylon construction can reduce handling and transport impacts compared with heavier metal fittings
- Durable corrosion-resistant material supports extended service life and reduces replacement waste
- Non-metallic construction avoids corrosion-related coating and replacement requirements
Warranty Information
Covered by the applicable ABB Australia standard warranty for goods, generally 12 months from delivery against defects in design, materials or workmanship, subject to the manufacturer's terms and conditions.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
