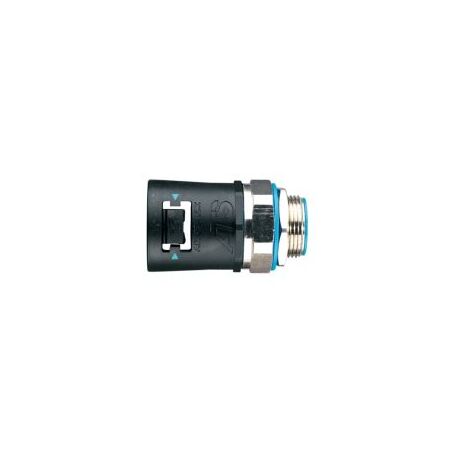

Adaptalok Straight Swivel 13mm M16 Male Blue Seal Adaptaflex
Adaptalok straight swivel fitting features 13mm conduit size, M16 nickel brass male thread, black nylon 66 body and blue TPE seal. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok ATS Type SA fitting, Adaptaflex 13mm swivel male conduit connector, M16 flexible conduit fitting
Technical Specifications
- Fitting Type: Straight body, swivel external male thread
- Nominal Conduit Size: 13mm
- Thread: M16 x 1.5 male metric thread
- Thread Length: 12mm
- Body Material: Polyamide nylon 66
- Thread Material: Nickel-plated brass
- Seal Material: Thermoplastic elastomer
- Body Colour: Black
- Seal Colour: Blue
- Ingress Protection: IP66 to IP69 rated, including IP68
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Compatible Conduit: Adaptaflex PA, PR, PADL and PF types
- Installation Method: Push-on snap connection with locknut supplied for metric thread
- Compliance: RoHS3 and REACH compliant
- Dimensions (H x L x W): 55.5mm x 21.2mm x 24.0mm
- Weight: 0.1 kg
Key Features
- Straight swivel design permits conduit movement and alignment
- M16 x 1.5 external male thread for installation through threaded entries or knockouts
- Blue TPE seal helps maintain conduit system integrity
- Nickel-plated brass thread provides durable threaded connection
- Suitable for 13mm Adaptaflex PA, PR, PADL and PF conduit
- IP66, IP68 and IP69-rated protection when correctly installed
- Wide operating temperature range for static and moving applications
Applications
- Electrical control panels and enclosures
- Industrial machinery and automation equipment
- Flexible cable protection systems
- Power, control, instrumentation and data cable routing
- Connections through threaded entries and enclosure knockouts
Standards & Compliance
- Relevant to flexible conduit systems covered by AS/NZS 61386.23:2015; verify project-specific certification and installation requirements
Environmental Benefits
- RoHS3 and REACH compliance supports restriction of hazardous substances
- Durable nylon, nickel-plated brass and TPE construction can extend service life and reduce replacement waste
- Brass components and nylon body materials can be recovered through appropriate recycling streams at end of life
Warranty Information
ABB standard product warranty: 18 months after delivery or 12 months after installation, whichever occurs first, subject to applicable terms and conditions.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
