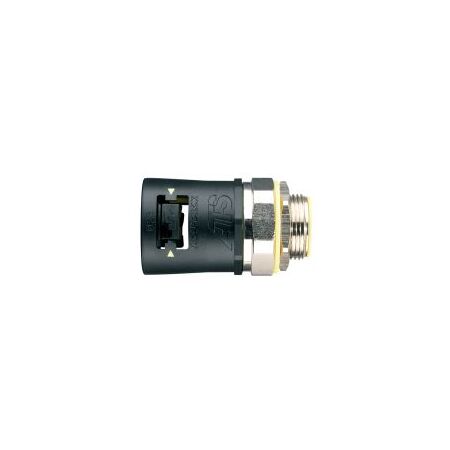

Adaptalok Straight Swivel 13mm M16 Male Yellow Seal Adaptaflex
Adaptalok straight swivel fitting features 13mm conduit size, M16 nickel brass male thread, black nylon 66 body and yellow TPE seal. Ideal for PA and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok ATS Type A Straight Fitting, Adaptaflex Nylon Conduit Connector, M16 Male Conduit Fitting
Technical Specifications
- Product Type: Adaptalok ATS Type A straight fitting
- Nominal Conduit Size: 13mm
- Thread: M16 x 1.5 external male thread
- Thread Material: Nickel-plated brass
- Body Material: Polyamide nylon 66
- Seal Material: TPE yellow elastomer
- Connection Type: Fixed external male thread with integrated seal system
- Ingress Protection: IP66, IP67, IP68 and IP69K
- Static Temperature Range: -50°C to +120°C
- Dynamic Temperature Range: -45°C to +120°C
- Compatible Conduit Series: PA, PR, PADL and PF
- Mechanical Classification: IEC 61386-1 and IEC 61386-23 tested
- Flammability: UL94 HB
- Environmental Compliance: RoHS3 and REACH compliant
- Dimensions (H x L x W): 21.2mm x 34.2mm x 21.2mm
- Weight: 0.1 kg
Key Features
- Straight single-piece conduit fitting with integrated yellow elastomer seal
- M16 metric external male thread for installation into threaded entries and knockouts
- Locknut supplied with metric-thread versions
- Suitable for 13mm Adaptaflex PA, PR, PADL and PF conduit systems
- IP66 to IP69K protection for demanding cable-management applications
- High impact resistance and fatigue resistance for moving applications
- UV-resistant, halogen-free construction
- Yellow elastomer version approved for NF and UNI applications
Professional Installation Requirements
- Installation should be carried out by a suitably qualified electrician or electrical tradesperson where the fitting forms part of an electrical installation. Secure the fitting with the supplied locknut and follow the conduit manufacturer's installation instructions.
Applications
- Electrical cable protection and cable management
- Machine and control-panel wiring
- Industrial automation equipment
- OEM electrical enclosures and switchboards
- Robotics and moving cable applications
- Installation through threaded entries and knockout panels
Standards & Compliance
- AS/NZS 61386.23:2015 is the applicable Australian/New Zealand standard for flexible conduit systems and fittings; verify the complete conduit and fitting system for the required installation classification
- Manufacturer data indicates compliance with BS EN 61386-1 and BS EN 61386-23 requirements
Environmental Benefits
- RoHS3 and REACH compliance supports reduced use of restricted hazardous substances
- Halogen-free construction helps reduce corrosive and toxic emissions in the event of fire
- UV-resistant nylon 66 construction supports extended service life and reduced replacement waste
- Lightweight polyamide construction reduces material use and transport weight compared with equivalent metal fittings
Warranty Information
12-month warranty against defects in materials and workmanship under ABB Australia standard sale terms, subject to proper handling, installation and use. Australian Consumer Law rights also apply.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
