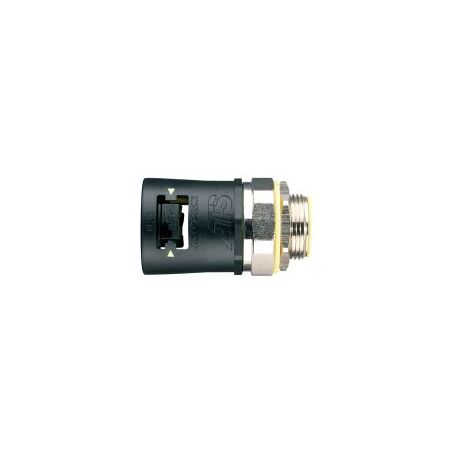

Adaptalok Straight Swivel 16mm Conduit M16 Male Black Adaptaflex
Adaptalok straight swivel fitting features 16mm conduit size, M16 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok ATS Type SA conduit fitting, 16mm straight swivel male connector, AT16/M16/SA/BLY
Technical Specifications
- Product Type: Adaptalok ATS Type SA straight fitting
- Nominal Conduit Size: 16 mm
- Thread: M16 x 1.5 external male thread
- Thread Type: Swivel metal external male thread
- Material: Polyamide nylon 66 body with nickel-plated brass thread and TPE seal
- Body Colour: Black
- Elastomer: Yellow TPE version
- Ingress Protection: IP66 to IP69 when used with compatible conduit and sealing arrangement
- Compatible Conduit: Adaptaflex PA, PR and PF conduit
- Static Temperature Range: -50°C to +120°C
- Moving Temperature Range: -45°C to +120°C
- Thread Length: 12 mm
- Approximate Conduit Outside Diameter: 23.2 mm
- Dimensions (H x L x W): 24mm x 43.5mm x 23.2mm
- Weight: 0.1 kg
Key Features
- Straight swivel fitting with external M16 male thread
- Fast push-on connection for compatible corrugated conduit
- Nylon 66 body provides a lightweight, corrosion-resistant construction
- Nickel-plated brass swivel thread for secure panel or enclosure connection
- IP66 to IP69 protection when correctly assembled with compatible conduit and seals
- Suitable for PA, PR and PF flexible conduit systems
- Designed for electrical cable protection in industrial and commercial installations
Professional Installation Requirements
- Installation should be completed by a suitably qualified electrician in accordance with the applicable wiring rules and the manufacturer's fitting instructions. Ensure the conduit, fitting, locknut and sealing arrangement are correctly matched to achieve the required IP rating.
Applications
- Electrical cable protection systems
- Industrial automation and machinery wiring
- Control panels and enclosure entries
- Commercial and institutional electrical installations
- Data, telecommunications and instrumentation cable protection
- OEM vehicle, marine and transport equipment
Standards & Compliance
- Applicable conduit-system requirements should be assessed against AS/NZS 61386.1 and AS/NZS 61386.23 for flexible conduit systems
- AS/NZS 3000 may apply to the completed electrical installation
Environmental Benefits
- Long service life can reduce replacement frequency and installation waste
- Nickel-plated brass components are recyclable through appropriate metal-recycling facilities
- Lightweight nylon construction reduces material use and transport weight compared with heavier metallic fittings
Warranty Information
ABB warranty coverage is generally against defects in materials and workmanship; the applicable warranty period and conditions are subject to current ABB Australia and authorised distributor terms.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
